XB7NA65 Schneider Electric Harmony, Monolithic Push Button, Blue
XB7NA65
Schneider Electric Harmony

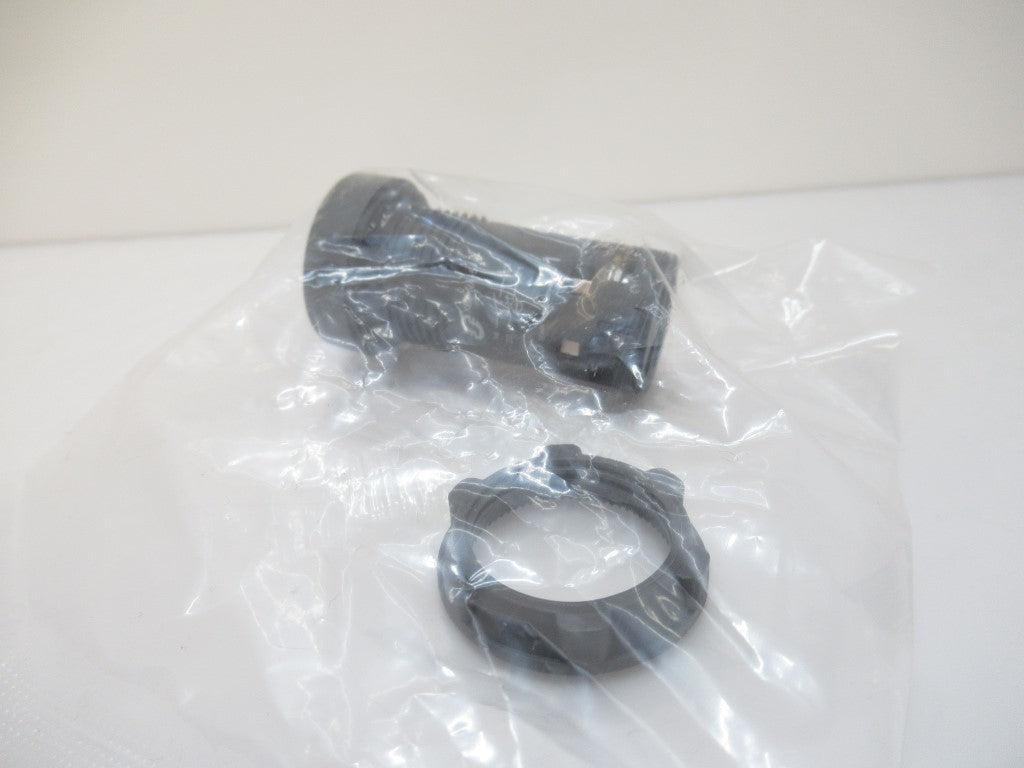

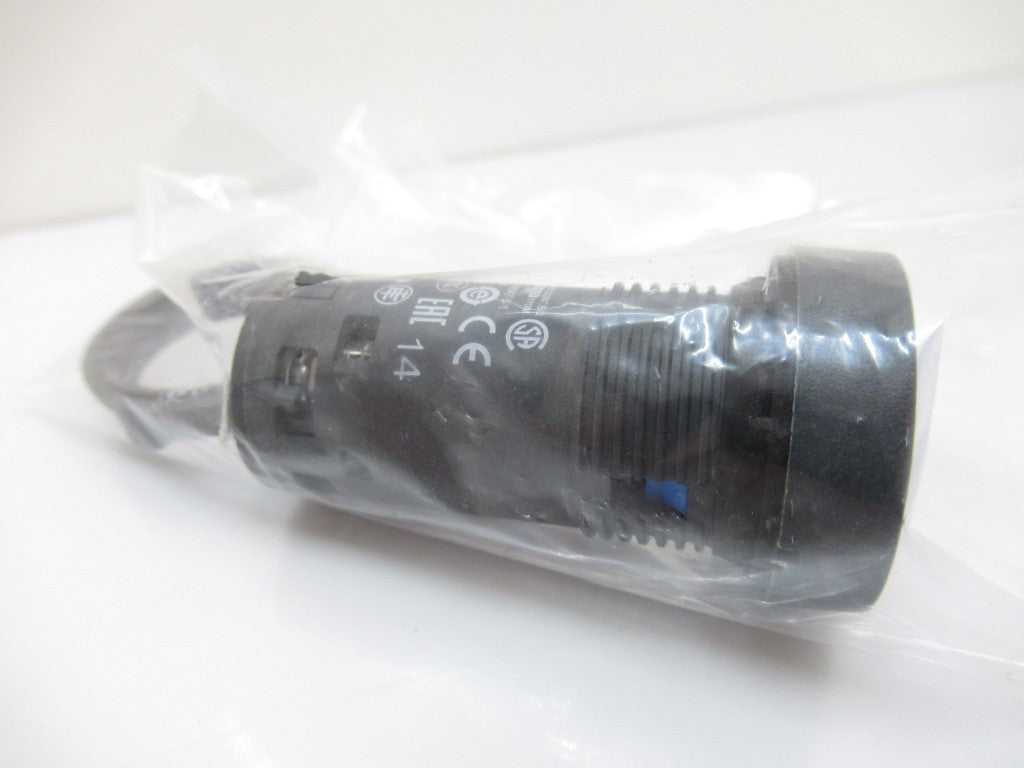

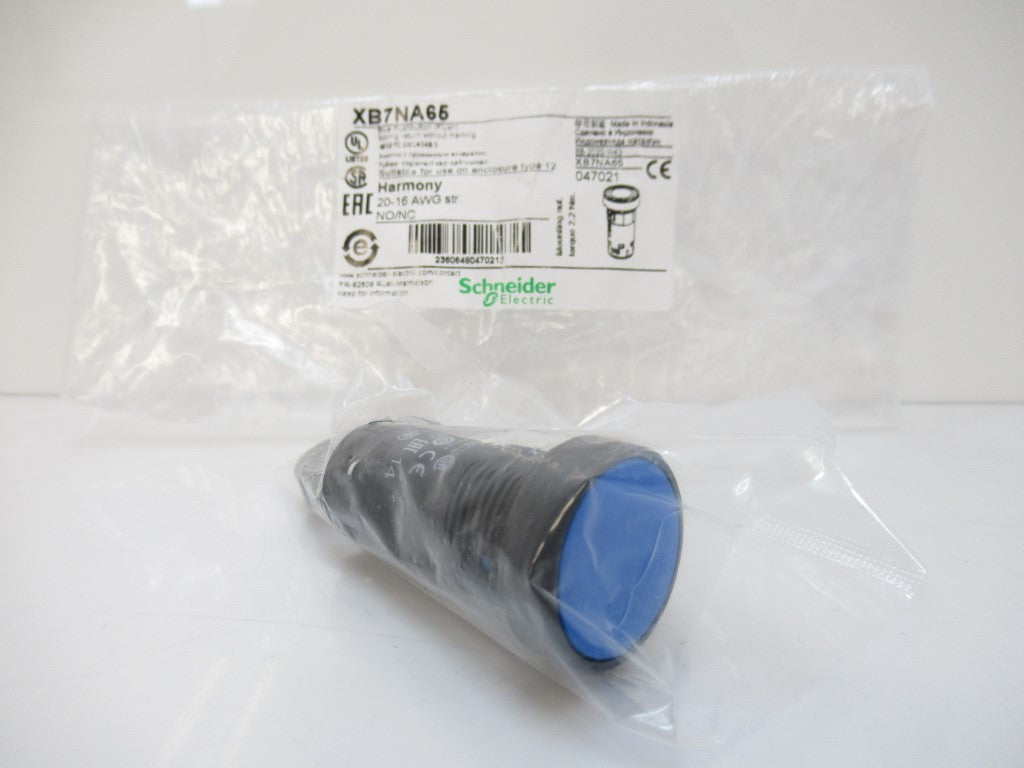

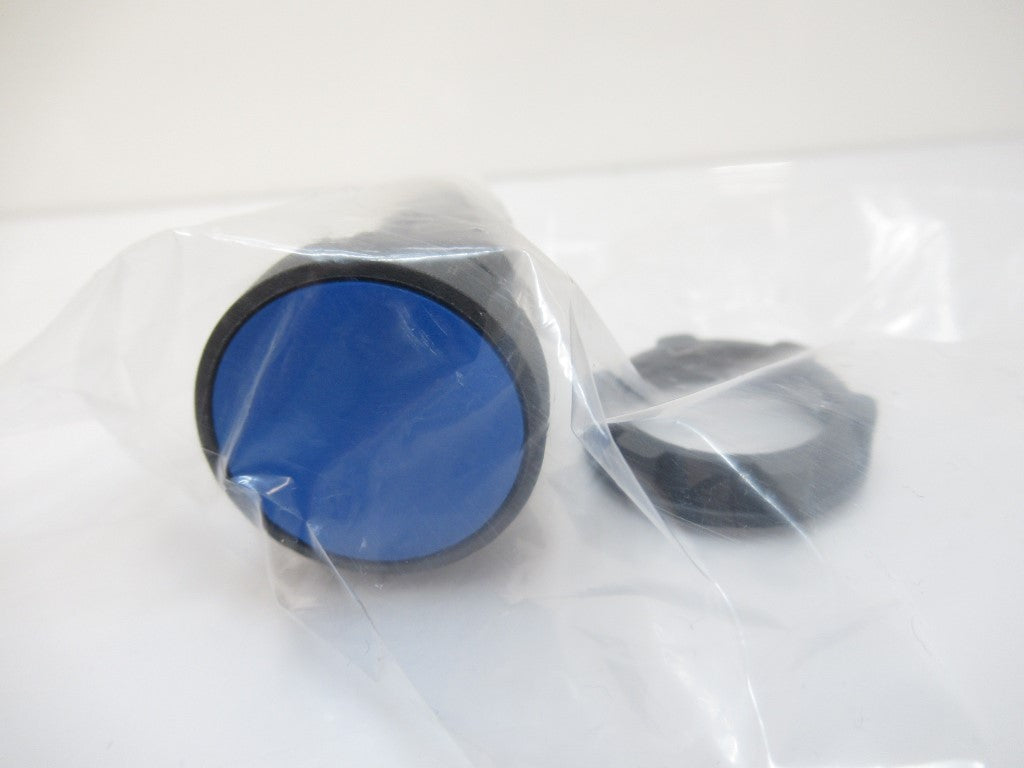

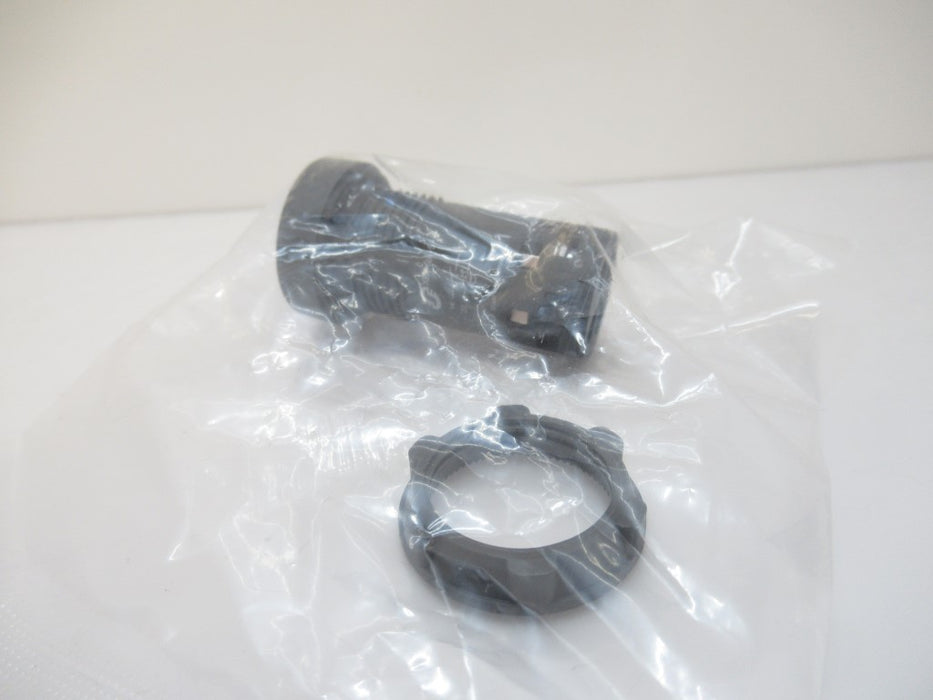

Monolithic Push Button, Plastic, Blue, Ø22, Spring Return, Unmarked, 1 NO + 1 NC
New In Bag
| range of product |
Harmony XB7
|
|
|---|---|---|
| product or component type |
Push-button
|
|
| device short name |
XB7
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
10
|
|
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529 |
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Blue flush, unmarked
|
|
| contacts type and composition |
1 NO + 1 NC
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| device presentation |
Monolithic product
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
29 mm
|
|
| CAD overall depth |
51.5 mm
|
|
| terminals description ISO n°1 |
(21-22)NC
(13-14)NO |
|
| net weight |
0.021 kg
|
|
| device mounting |
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1
|
|
| fixing center |
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
|
| fixing mode |
Fixing nut beneath head: 2…2.4 N.m
|
|
| contact operation |
Slow-break
|
|
| positive opening |
With NC contact conforming to EN/IEC 60947-5-1 appendix K
|
|
| mechanical durability |
1000000 cycles
|
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| short-circuit protection |
4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
4 kV EN/IEC 60947-1
|
|
| [Ie] rated operational current |
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
|
| electrical durability |
1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
Λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4
|
