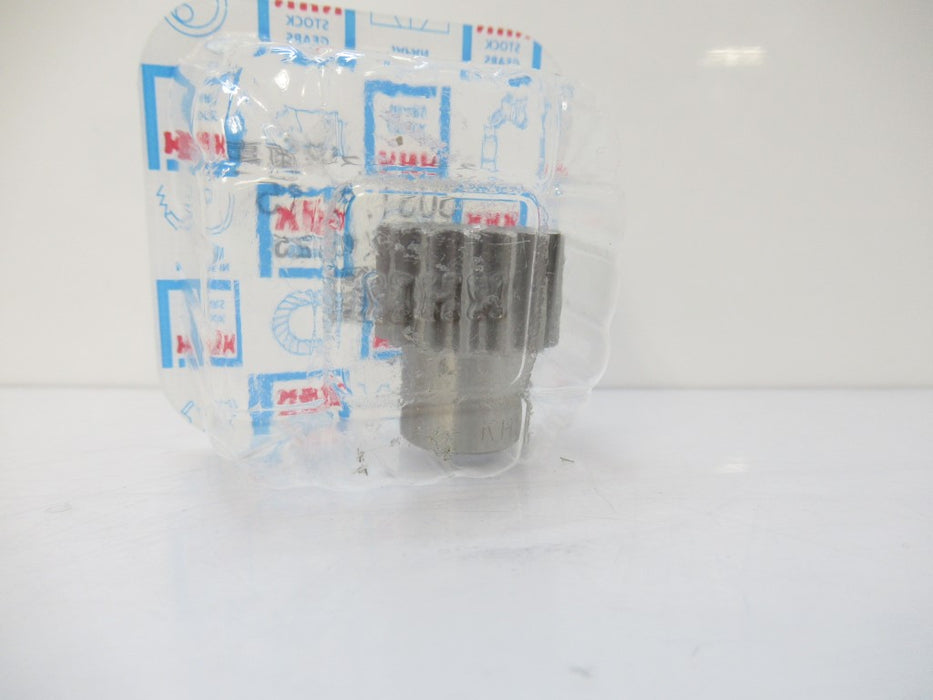

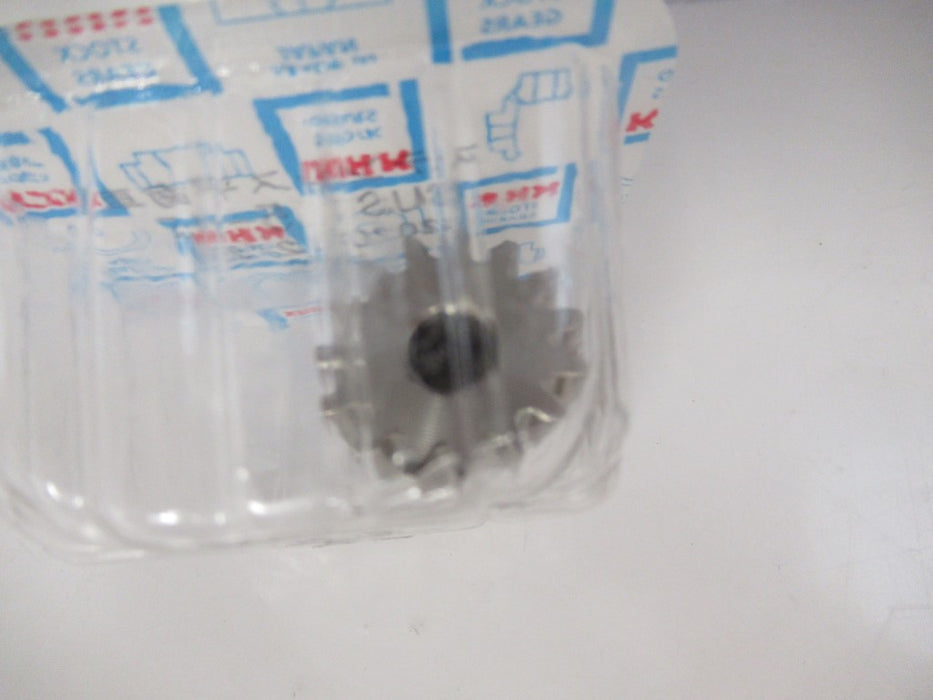

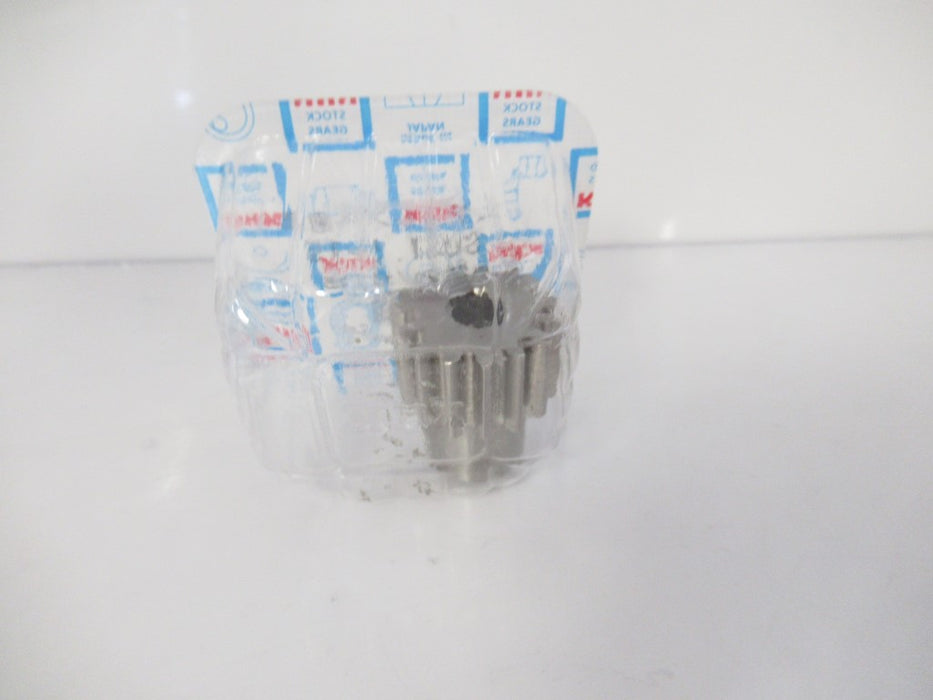

SUS1.5-15 SUS1515 KHK Module 1.5, 15 Tooth, 303 SS, Spur Gears (New In Box)

SUS1.5-15 KHK Module 1.5, 15 Tooth, 303 Stainless Steel, Spur Gears

Name: SUS1.5-15 KHK Module 1.5, 15 Tooth, 303 Stainless Steel, Spur Gears
Availability: InStock

SKU MOV-0706-E

$48.70 USD - $48.70 USD

$48.70 USD

$48.70 USD - $48.70 USD

$48.70 USD

Availability:

Only 1 left!

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by KHK

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

SUS1.5-15 SUS1515

KHK

Metal Gear - 20 Degree Pressure Angle

Round, 1.5 Module, 15 Tooth, 22.5 mm Pitch, 303 Stainless Steel

(New In Box)

Description

Gear Type: Spur
Pressure Angle: 20°
Component: Gear
System of Measurement: Metric
Bore Type: Round
Module: 1.5
Number of Teeth: 15
Gear Pitch Diameter: 22.5 mm
OD: 25 mm
Face Width: 15 mm
Overall Width: 29 mm
For Shaft Diameter: 8 mm
Material: 303 Stainless Steel
Teeth Heat Treatment: Not Hardened
Hub: Diameter 18 mm, Width 14 mm
RoHS: RoHS 3 (2015/863/EU) Compliant
REACH: REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
DFARS: Specialty Metals COTS-Exempt
Schedule B: 848340.9000
ECCN: EAR99

SUS1.5-15 KHK Module 1.5, 15 Tooth, 303 Stainless Steel, Spur Gears
