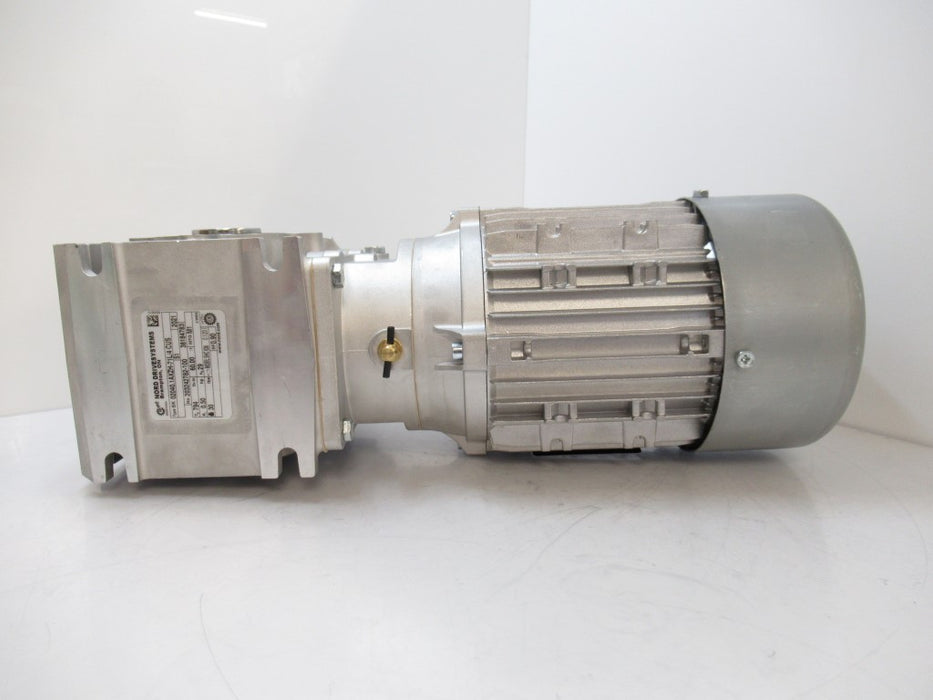

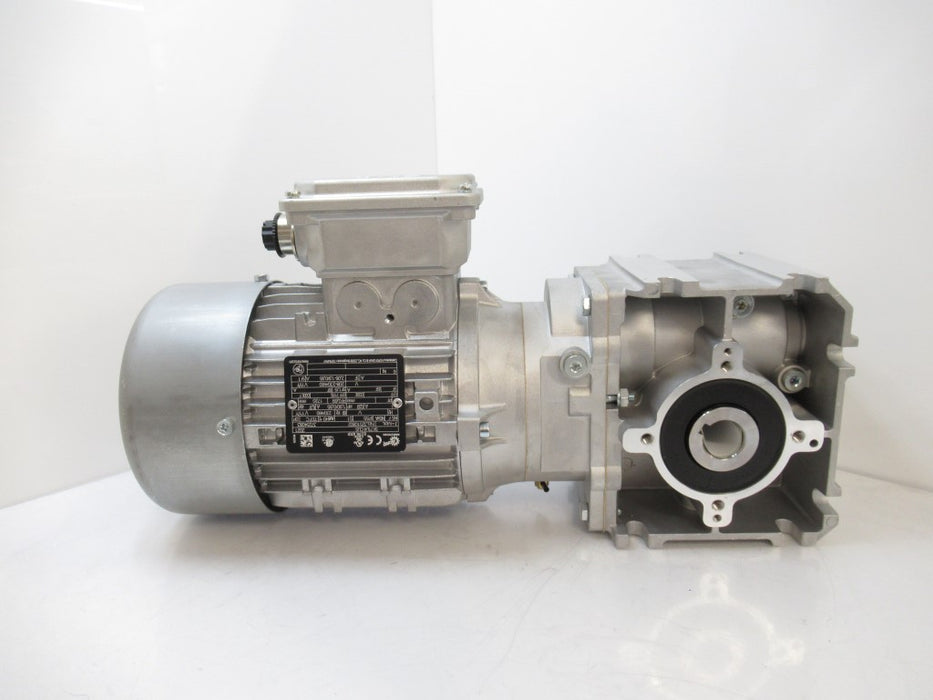

Nord Gear SK02040.1AXZH-71L/4CUS Gearmotor 0.50 HP Ratio 60.00 :1

Product Information

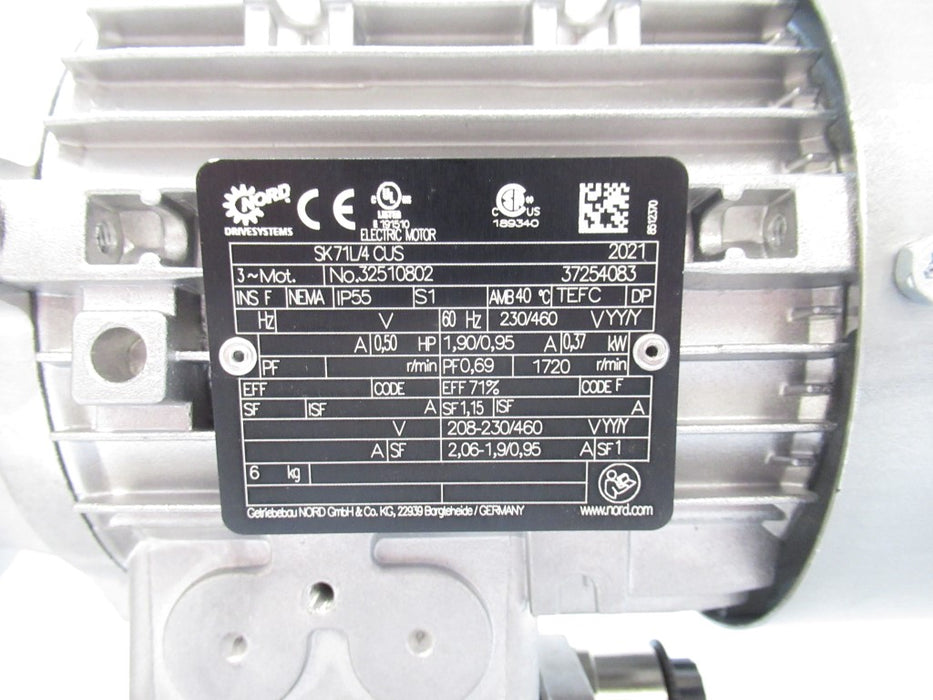

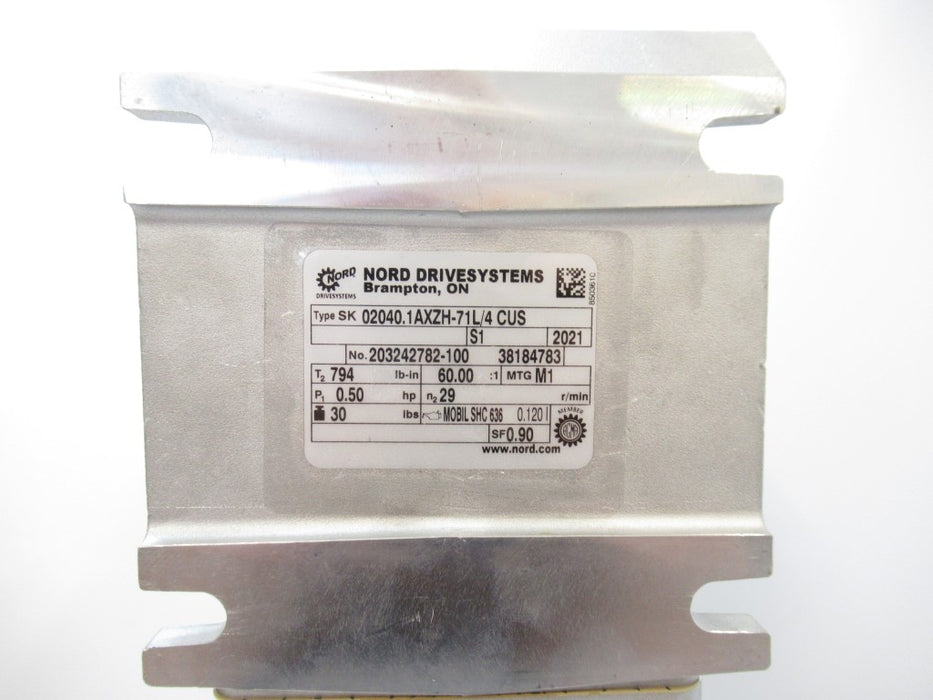

SK02040.1AXZH-71L/4 CUS

• Product Name: Gearmotor
• Engine Type: CUS
• Ratio 60.00 :1
• Motor Speed: 1,720 1 / min
• Engine Speed: 1,720 rpm
• Reduction Ratio: 60.00
• Output Speed: 29,000 rpm
• Service Factor: 0.90
• Output torque M2 (lb-po): 794.00
• Max Torque output (lb-po): 726.00
• Power (kW): 0.370
• Power (HP): 0.500
• Voltage (V): 230/460
• Frequency (Hz): 60
• Operating Mode: S1
• Motor Protection Type: IP55
• Insulation Class: F
• Nominal Current 1 (AMP): 1.90
• Nominal Current 2 (AMP): 0.95
• Cosine 1: 0.69
• Motor Ambient Temperature: 40°C
• Mounting Position: M1

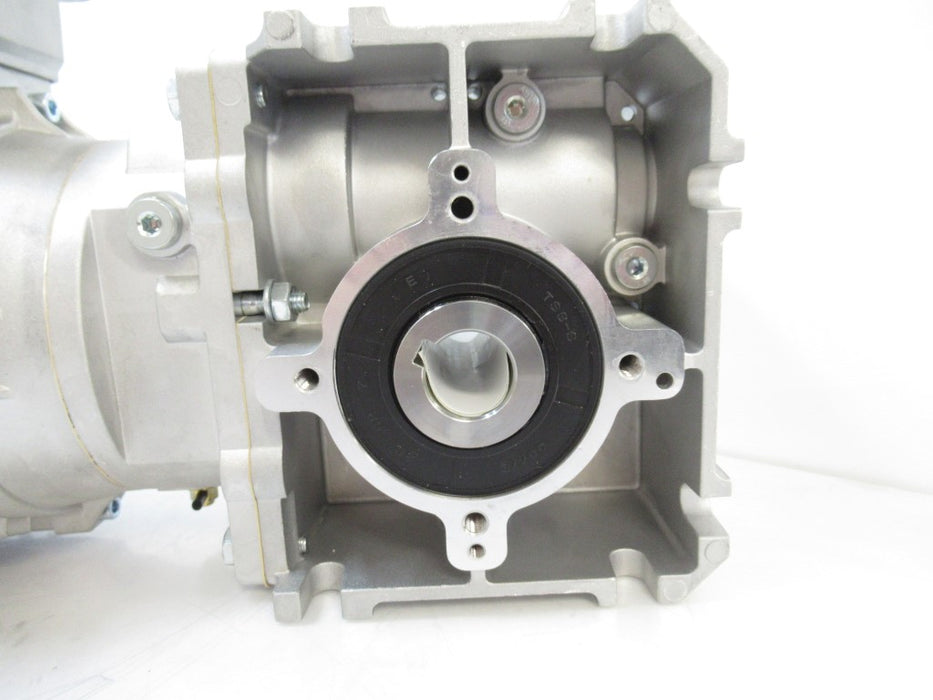

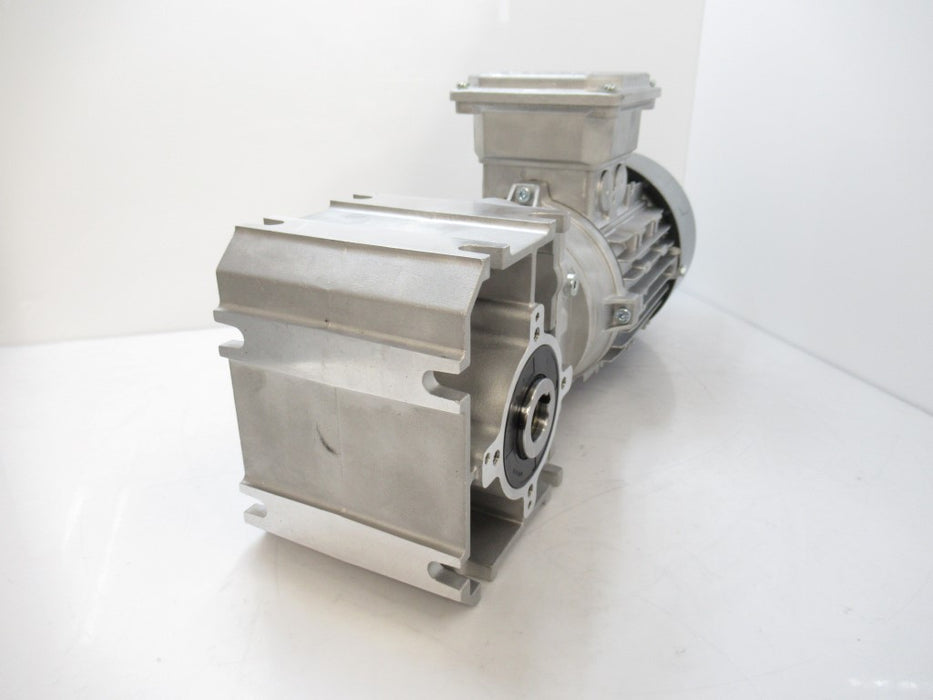

• Housing Type (gearbox): Hollow Shaft, B14 Flange, Footed
• Shaft Dimension (mm / in): 20H7
• Event: Vent Valve
• Connection Mode: Star

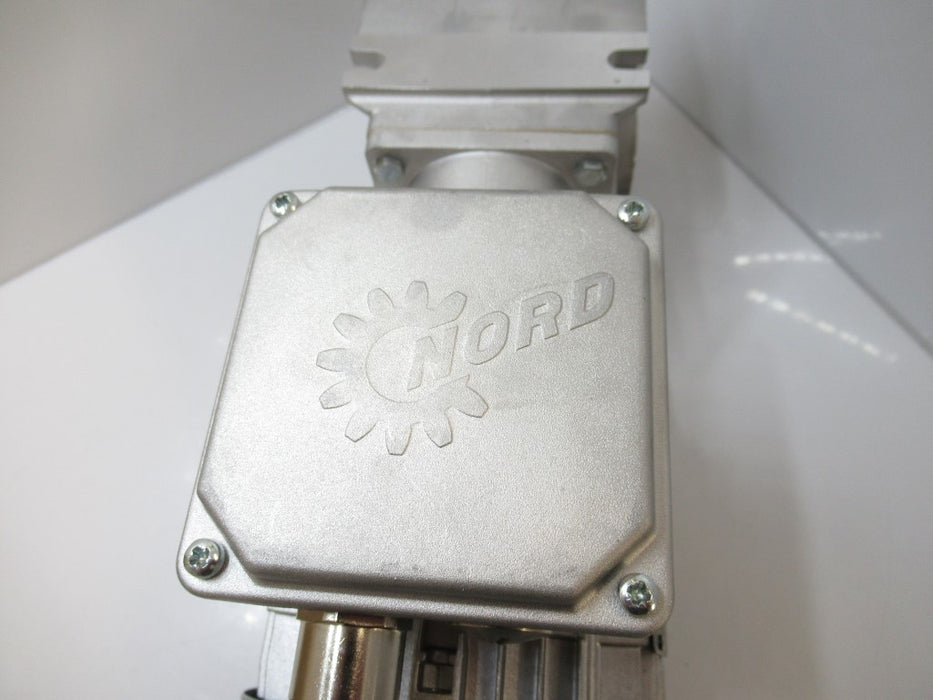

• Terminal Box Position: 4 / II
