Ifm | SKU:
IF-VVB010-E

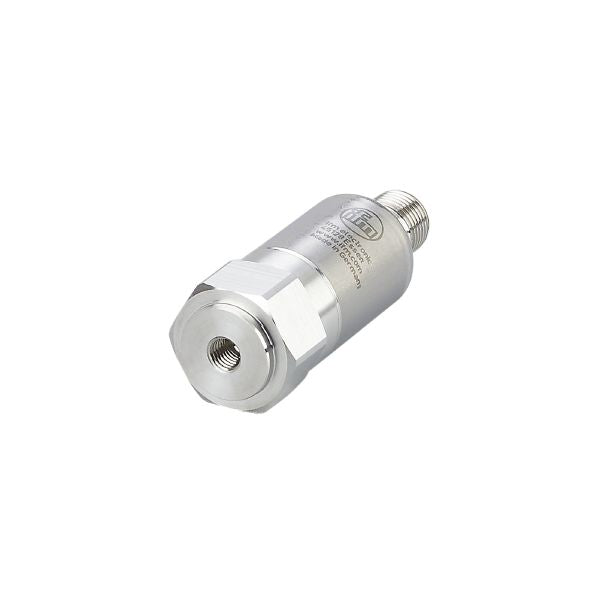

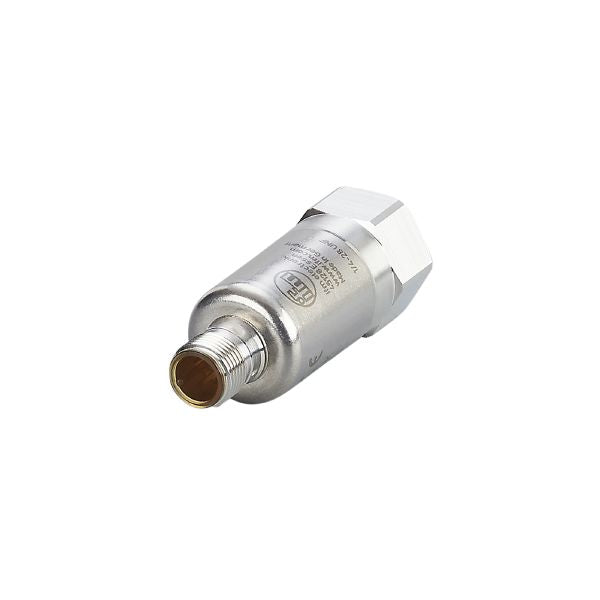

Ifm VVB010 Vibration Sensor
$550.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm VVB010 Vibration Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm VVB010 Vibration Sensor
$550.00 USD
Unit price
/
Unavailable
Product characteristics
| Frequency range [Hz] | 2...10000 |
|---|---|
| Measuring principle | capacitive |
v-RMS
| Measuring range of vibration [mm/s] | 0...45 |
|---|
a-Peak / a-RMS
| Measuring range of vibration |
|
|---|
Application
| Application | Big machines, performance > 300 kW, speed > 600 rpm |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of sensor | Microelectromechanical system (MEMS) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Output signal | switching signal; IO-Link |
|---|---|
| Electrical design | PNP/NPN; (configurable) |
| Number of digital outputs | 2 |
| Output function | normally open / closed |
| Max. voltage drop switching output DC [V] | 2 |
| Max. current load per output [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Note on setpoint SP |
|
|
|---|---|---|
| Frequency range [Hz] | 2...10000 | |
| Measuring principle | capacitive | |
| Number of measurement axes | 1 |
v-RMS
| Measuring range of vibration [mm/s] | 0...45 |
|---|---|
| Set point SP [mm/s] | 0.2...45 |
| Reset point rP [mm/s] | 0...44.8 |
| In steps of [mm/s] | 0.2 |
a-Peak / a-RMS
| Measuring range of vibration |
|
||
|---|---|---|---|
| Set point SP |
|
||
| Reset point rP |
|
||
| In steps of |
|
Crest
| Measuring range of vibration | 1...50 |
|---|---|
| Set point SP | 2...50 |
| Reset point rP | 1...49 |
| In steps of | 1 |
Temperature measurement
| Measuring range [°C] | -30...80 |
|---|---|
| Resolution [°C] | 0.1 |
| Set point SP [°C] | -28...80 |
| Reset point rP [°C] | -30...78 |
| In steps of [°C] | 2 |
Accuracy / deviations
| Accuracy | ≤ 4 kHz +/-10 %; ≥ 4...10 kHz: < 3 dB |
|---|---|
| Accuracy [K] | ± 2,5 K + (0,2 x (Umgebungstemperatur - Oberflächentemperatur)) |
| Linearity deviation | 2 % |
Software / programming
| Parameter setting options | Software |
|---|---|
| Diagnostic functions | self-test |
Interfaces
| Communication interface | IO-Link | ||||||
|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud); COM3 (230,4 kBaud) | ||||||
| IO-Link revision | 1.1 | ||||||
| SDCI standard | IEC 61131-9: 2013-07 | ||||||
| Profiles | Blob (0x0030); Measuring sensor (0x800A); Common Profile (0x4000) | ||||||
| SIO mode | yes | ||||||
| Required master port class | A | ||||||
| Process data analog | 10 | ||||||
| Process data binary | 2 | ||||||
| Min. process cycle time [ms] | 3.6 | ||||||
| IO-Link functions (acyclical) | filter for v-RMS, a-RMS, a-Peak; Hysteresis; window; Switch points; switching logic | ||||||
| Supported DeviceIDs |
|
||||||
| Note |
|
