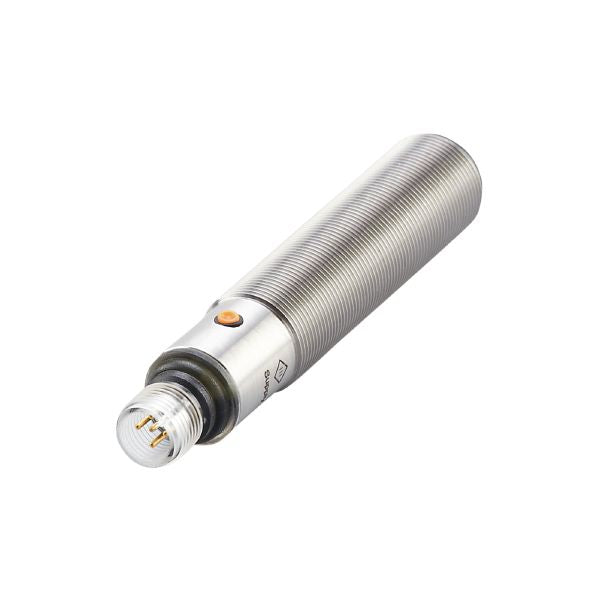

Ifm UGR503 Ultrasonic Sensor

Ifm UGR503 Ultrasonic Sensor

SKU IF-UGR503-E
$280.00 USD - $280.00 USD
$280.00 USD
$280.00 USD - $280.00 USD
$280.00 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Housing Threaded type
Electrical data
Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
Current consumption [mA] 55
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 0.3
Converter frequency [kHz] 200
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1
Outputs
Total number of outputs 1
Electrical design NPN
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2.2
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 2
Short-circuit protection yes
Overload protection yes
Monitoring range
Sensing range [mm] < 2200; (Target: 200 x 200 mm)
Angle of aperture cylindrical [°] 14; (±2)
Accuracy / deviations
Temperature compensation yes
Hysteresis [%] < 2
Switch-point drift [%] -2...2
Repeatability 1 %
Resolution [mm] 1
Notes on the accuracy / deviation The indicated values are reached after a warm-up time of min. 20 minutes
Operating conditions
Ambient temperature [°C] -20...70
Storage temperature [°C] -30...80
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 3 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 3 V
EN 55011 class A
Vibration resistance
EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
MTTF [years] 159
UL approval
Ta -20...70 °C
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 102
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 97.5
Thread designation M18 x 1
Material stainless steel (1.4404 / 316L); PA; epoxy glass ceramics
Tightening torque [Nm] 50
Displays / operating elements
Display
Switching status 2 x LED, yellow
echo 1 x LED, green
Teach function yes
Accessories
Items supplied
lock nuts: 2, stainless steel
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection - connector
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
Response curve
1: Distance
2: sound beam
3: Target 200 x 200 mm
4: Target Ø 25 mm
5: Reflector
