Ifm | SKU:
IF-TW7000-E

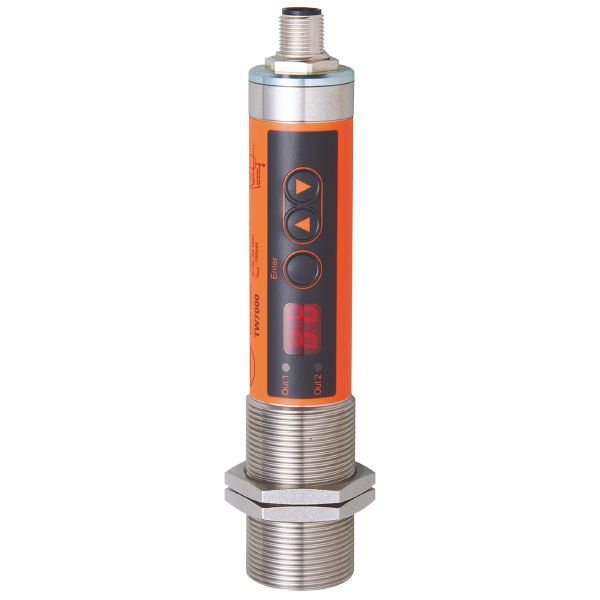

Ifm TW7000 Infrared Temperature Sensor
$1,135.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm TW7000 Infrared Temperature Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm TW7000 Infrared Temperature Sensor
$1,135.56 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 | ||
|---|---|---|---|
| Measuring range |
|
Application
| Application | asphalt; coated metal; liquids; glass; rubber; wood; ceramics; plastics; lacquers; food products; paper; fabric |
|---|
Electrical data
| Operating voltage [V] | 10...34 DC |
|---|---|
| Current consumption [mA] | 30; (24 V) |
| Protection class | III |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Inputs
| Test input | test function active at U(test) > 9 V |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Wave length range [µm] | 8...14 |
|---|
Measuring/setting range
| Measuring range |
|
||
|---|---|---|---|
| Factory setting | SP1 = 25 %; rP1 = 23 %; SP2 = 75 %; rP2 = 73 % | ||
| Set point SP |
|
||
| Reset point rP |
|
||
| In steps of |
|
Resolution
| Resolution of switching output [K] | 4.5 |
|---|---|
| Resolution of display [K] | 4.5 |
Accuracy / deviations
| Accuracy [K] | < ± 1 %; (< ± 1 % of MEW (degree of emission = 1 and T = 23 °C)) |
|---|
Reaction times
| Response time [ms] | 100 |
|---|
Software / programming
| Adjustment of the switch point | Programming buttons |
|---|---|
| Parameter setting options | Hysteresis; normally open / closed; switch-on/switch-off delay |
Operating conditions
| Ambient temperature [°C] | 0...65 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Max. relative air humidity [%] | 95; (non condensing) |
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||||
| Vibration resistance |
|
||||||||||||
| MTTF [years] | 149.7 |
Mechanical data
| Weight [g] | 350 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M30 x 1.5 / L = 155 | |
| Thread designation | M30 x 1.5 | |
| Material | threaded sleeve: stainless steel (1.4305 / 303); polyester | |
| Lens material |
|
Displays / operating elements
| Display |
|
||||||
|---|---|---|---|---|---|---|---|
| Operating elements |
|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|---|
