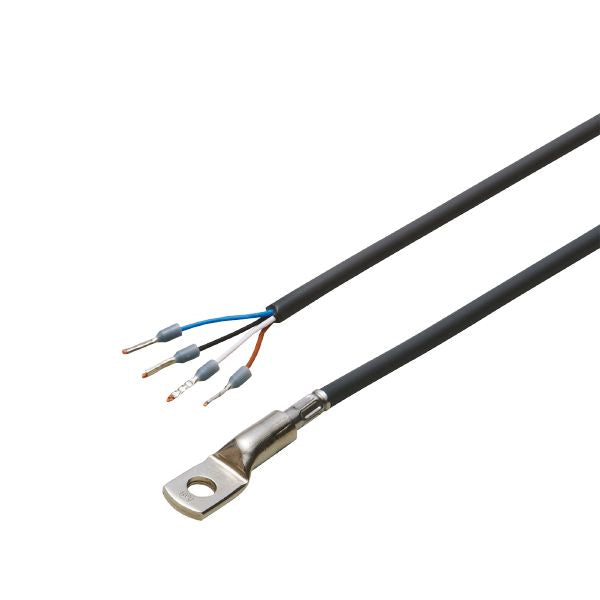

Ifm TS2239 Temperature Cable Sensor With Bolt-On Sensor

Application

• Measuring Element: 1 x Pt 100 (DIN EN 60751, class A)
• Installation: Contact sensor for solid bodies

Electrical Data

• Insulation Rating: 500 V
• Protection Class: III

Measuring/Setting Range

• Measuring Range: -40...90 °C (-40...194 °F)

Accuracy / Deviations

• Accuracy: ± (0.15 K + 0.002 x |t|)

Reaction Times

• Dynamic Response T05 / T09: 12 s / 39 s
  (Values for flat anodized aluminum surface with conductive heat paste; reference values for moving water: 10 s / 24 s at < 0.1 m/s)

Operating Conditions

• Protection: IP 67

Tests / Approvals

• MTTF: 12,683.9 years

Mechanical Data

• Weight: 101.4 g
• Housing: Bolt-on sensor
• Dimensions: 12.5 x 8.7 x 49.5 mm
• Material: Sleeve: Stainless steel (1.4571/316Ti); Crimps: Copper nickel-plated
• Process Connection: Bolt-on sensor (12.5 x 8.7 x 49.5 mm)

Remarks

• Applications: According to UL “Supply Class 2”
• Pack Quantity: 1 pcs.

Electrical Connection

• Connection: Cable, 2 m, PUR, Ø 4.9 mm; with wire end ferrules; 4 x 0.34 mm² (42 x Ø 0.1 mm)
