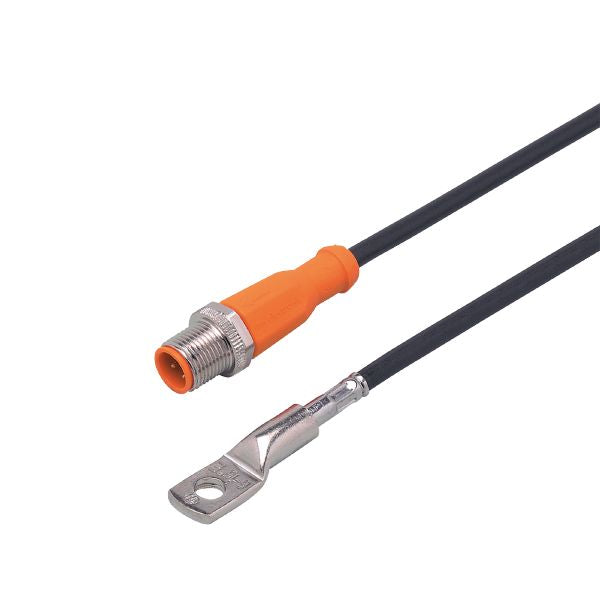

Ifm TS2229 Temperature Cable Sensor With Bolt-On Sensor
| Measuring range |
|
||
|---|---|---|---|
| Process connection | bolt-on sensor 12 x 8,7 x 51 mm |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Installation | Contact sensor for solid bodies |
| Insulation rating [V] | 2500; (Insulation between sensor housing and internal) |
|---|---|
| Protection class | III |
| Measuring range |
|
|---|
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
| Dynamic response T05 / T09 [s] | 9 / 15; (Values for a flat aluminium surface (anodized) using a conductive heat paste.; reference values for moving water : 10 / 24 (< 0,1 m/s)) |
|---|
| Protection | IP 67 |
|---|
| MTTF [years] | 11415.5 |
|---|
| Weight [g] | 88.5 |
|---|---|
| Housing | bolt-on sensor |
| Dimensions [mm] | 12 x 8.7 x 51 |
| Material | stainless steel (1.4303 / 305 / 308); copper nickel-plated |
| Process connection | bolt-on sensor 12 x 8,7 x 51 mm |
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 2 m, PUR, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
