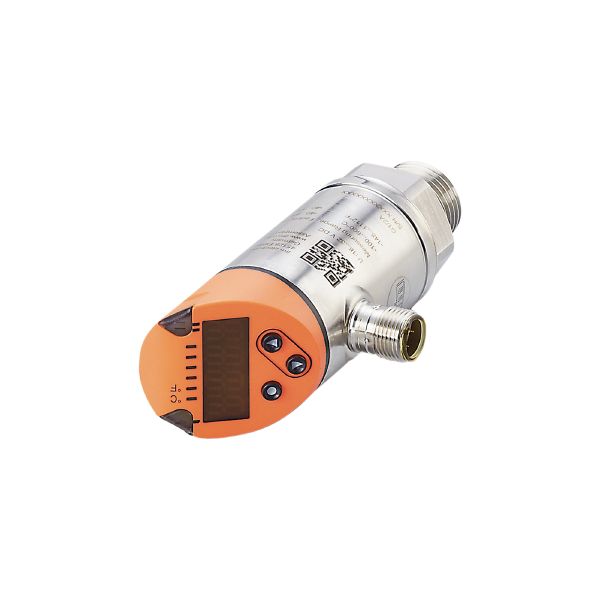

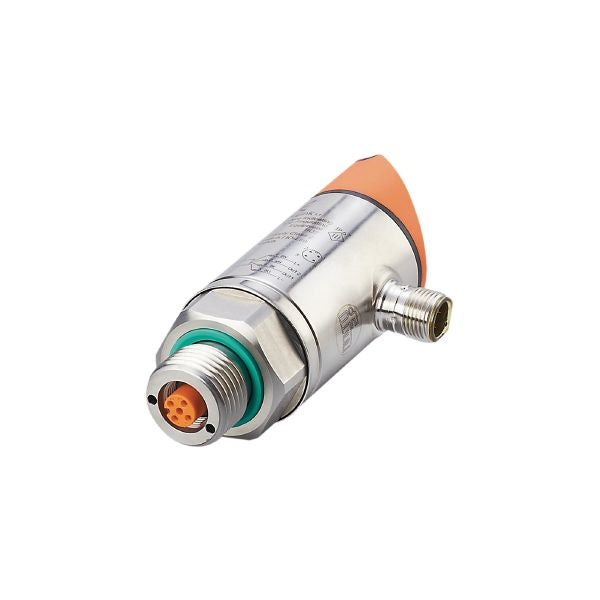

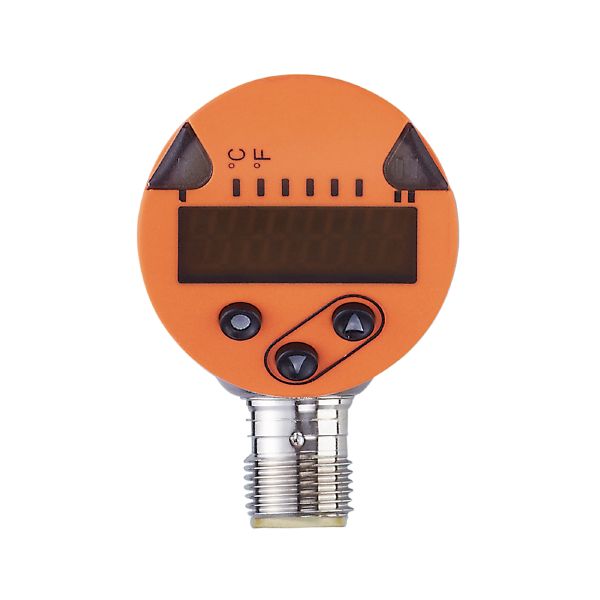

Ifm TR7439 Evaluation Unit With Display For Pt100/Pt1000 Temperature Sensors
Ifm TR7439 Evaluation Unit With Display For Pt100/Pt1000 Temperature Sensors is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm TR7439 Evaluation Unit With Display For Pt100/Pt1000 Temperatur...
| Number of inputs and outputs | Number of digital outputs: 2 | ||
|---|---|---|---|
| Measuring range |
|
||
| Communication interface | IO-Link | ||
| Process connection | threaded connection G 1/2 external thread |
| System | gold-plated contacts |
|---|---|
| Application | for Pt100 and Pt1000 measuring elements |
| Operating voltage [V] | 18...32 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 1 |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring range |
|
||
|---|---|---|---|
| Set point SP |
|
||
| Reset point rP |
|
||
| In steps of |
|
| Resolution of switching output [K] | 0.1 |
|---|---|
| Resolution of display [K] | 0.1 |
| Switch point accuracy [K] | ± 0,3 + (± 0,1 % MS) |
|---|---|
| Display accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Temperature coefficient [% of the span / 10 K] | 0,1; (In case of deviation from the reference condition 25 ± 5 °C) |
| Response time [ms] | 390 |
|---|
| Parameter setting options | hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 252 | ||||
| UL approval |
|
| Weight [g] | 198.5 |
|---|---|
| Material | stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PBT+PC-GF30; PBT-GF20; PC |
| Process connection | threaded connection G 1/2 external thread |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
