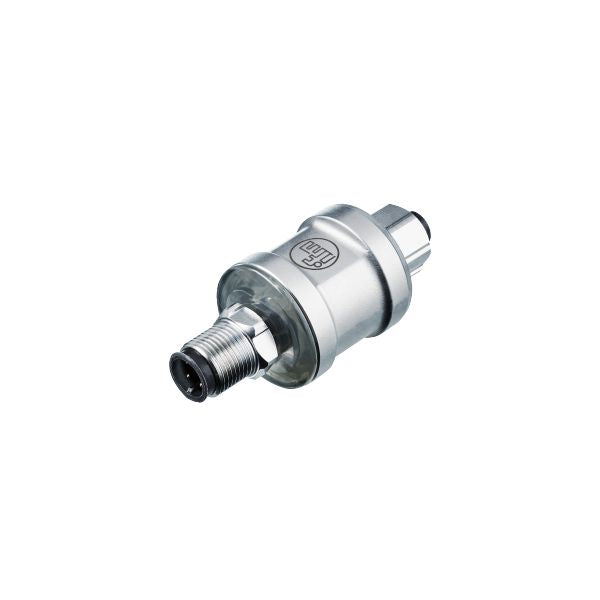

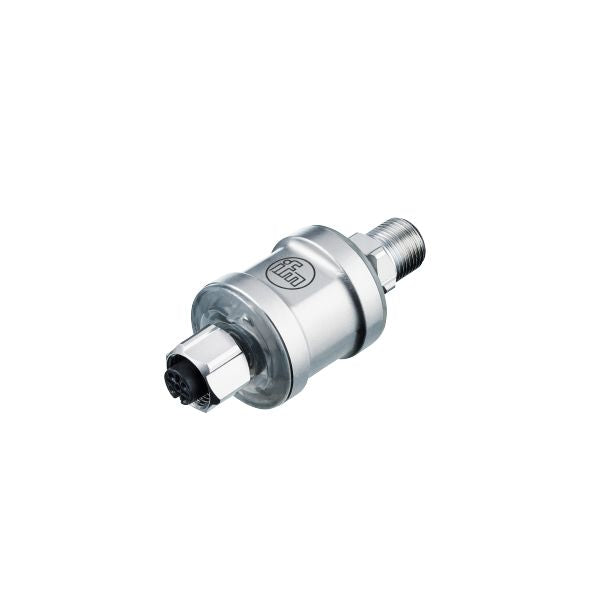

Ifm TP2009 Temperature Plug For Hygienic Applications
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Communication interface | IO-Link |
| System | gold-plated contacts |
|---|---|
| Application | for Pt100 and Pt1000 measuring elements |
| Operating voltage [V] | 18...32 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 2 |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | analog signal; IO-Link; switching signal; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | (Ub-13,5)/0,0215 |
| Short-circuit protection | yes |
| Type of short-circuit protection | not locked in place |
| Overload protection | yes |
| Measuring range |
|
||
|---|---|---|---|
| Factory setting | -100...600 °C | ||
| Resolution of analog output [K] | 0.076; (MS: -100...600 °C) |
| Precision analog output [K] | ± 0,32; (MS: -100...600 °C) ; or ± (0,067 % MS) |
|---|---|
| Precision IO-Link [K] | ± 0,05 |
| Temperature coefficient analog output [% of the span / 10 K] | < 0,1 |
| Temperature coefficient IO-Link [% of the span / 10 K] | < 0,06 |
| Max. measuring/display cycle [ms] | 350 |
|---|
| Parameter setting options | scaling of the analog output; calibration adjustment; hysteresis / window; switching logic; simulation mode |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1.3 |
| IO-Link resolution temperature [K] | 0.1 |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 68; IP 69K |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
| Weight [g] | 53.75 |
|---|---|
| Dimensions [mm] | 65 x 27.4 x 27.4 |
| Thread designation | M12 x 1 |
| Material | LED: PA; housing: stainless steel (1.4404 / 316L) |
| Sealing material | FKM |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A; Moulded body: TPU (urethane); Locking: stainless steel (1.4404 / 316L); sealing: FKM; Contacts: gold-plated |
|---|
