Ifm | SKU:
IF-TN2415-E

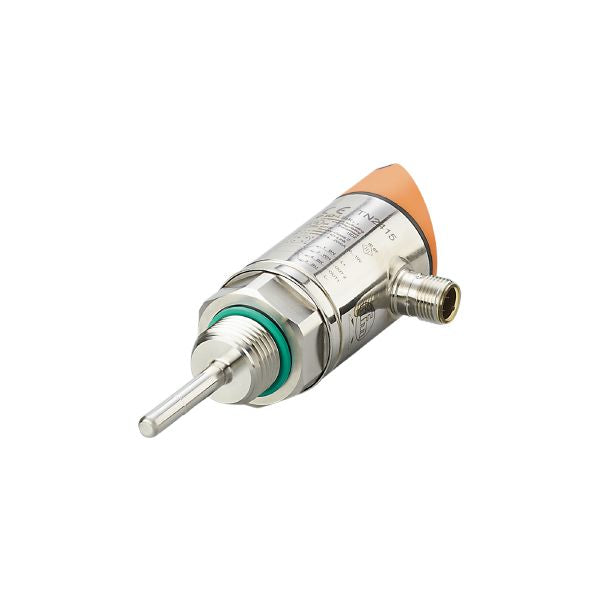

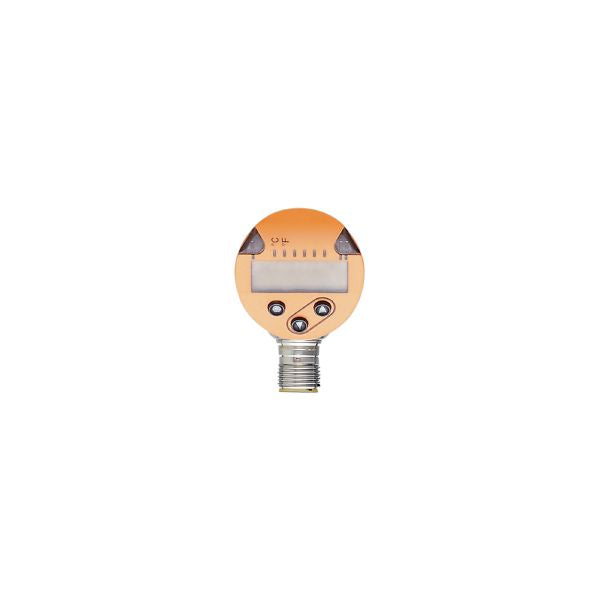

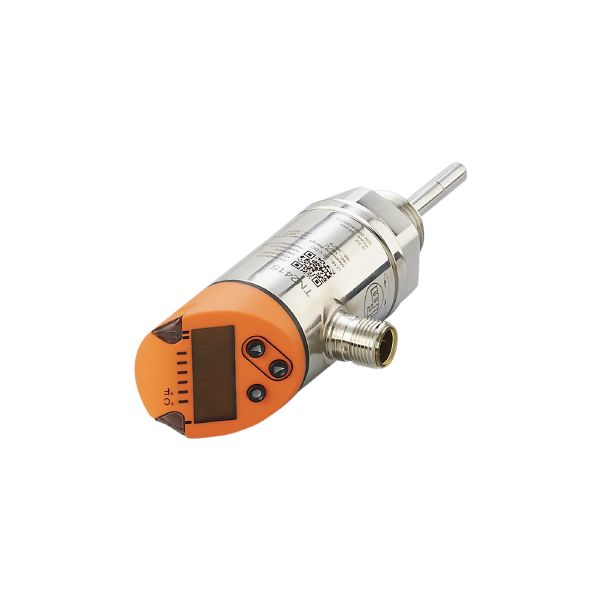

Ifm TN2415 Temperature Sensor With Display
$438.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm TN2415 Temperature Sensor With Display is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm TN2415 Temperature Sensor With Display
$438.33 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Communication interface | IO-Link | ||
| Process connection | threaded connection G 1/2 | ||
| Installation length EL [mm] | 50 |
Application
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
Electrical data
| Operating voltage [V] | 18...32 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Analog voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
|
||
|---|---|---|---|
| Factory setting | -50...150 °C | ||
| Set point SP |
|
||
| Reset point rP |
|
||
| Analog start point |
|
||
| Analog end point |
|
||
| In steps of |
|
Resolution
| Resolution of switching output [K] | 0.1 |
|---|---|
| Resolution of analog output [K] | current output: MS / 4096; voltage output: MS / 3561 |
| Resolution of display [K] | 0.1 |
Accuracy / deviations
| Switch point accuracy [K] | ± 0,3 + (± 0,1 % MS) |
|---|---|
| Precision analog output [K] | ± 0,3 + (± 0,1 % MS) |
| Display accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Temperature coefficient [% of the span / 10 K] | 0,1; (In case of deviation from the reference condition 25 ± 5 °C) |
Reaction times
| Dynamic response T05 / T09 [s] | 1 / 3; (according to DIN EN 60751) |
|---|
Software / programming
| Parameter setting options | hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 207 | ||||
| UL approval |
|
