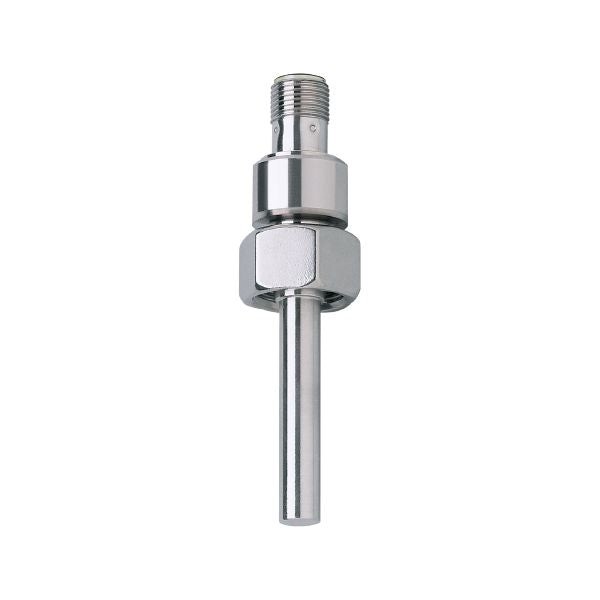

Ifm TM9950 Temperature Sensor With Process Connection
| Measuring range |
|
||
|---|---|---|---|
| Process connection | threaded connection M18 x 1,5 Internal thread | ||
| Installation length EL [mm] | 60 |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class B) |
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
| Minimum installation depth [mm] | 15 |
| Protection class | III |
|---|
| Probe length L [mm] | 44 | ||
|---|---|---|---|
| Measuring range |
|
| Accuracy [K] | ± (0,30 K + 0,005 x|t|) |
|---|
| Dynamic response T05 / T09 [s] | 1 / 3; (according to DIN EN 60751) |
|---|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68; IP 69K |
| MTTF [years] | 22831 |
|---|
| Weight [g] | 81.5 |
|---|---|
| Material | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) |
| Process connection | threaded connection M18 x 1,5 Internal thread |
| Probe diameter [mm] | 8.2 |
| Installation length EL [mm] | 60 |
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
