Ifm | SKU:
IF-TM4591-E

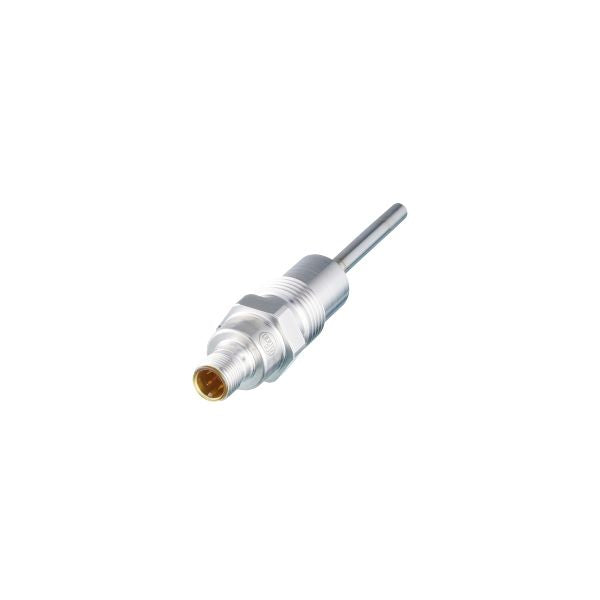

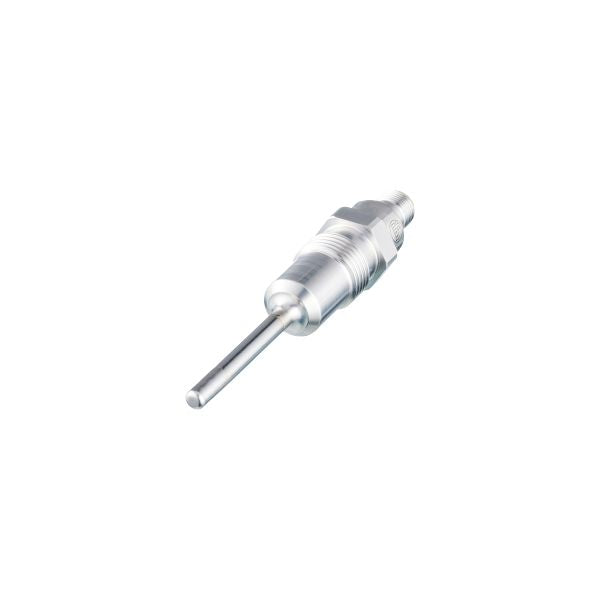

Ifm TM4591 Temperature Sensor With Process Connection
$171.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm TM4591 Temperature Sensor With Process Connection is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm TM4591 Temperature Sensor With Process Connection
$171.11 USD
Unit price
/
Unavailable
Product characteristics
| Measuring range |
|
||
|---|---|---|---|
| Process connection | threaded connection G 1/2 sealing cone | ||
| Installation length EL [mm] | 20 |
Application
| System | gold-plated contacts | ||
|---|---|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) | ||
| Media | liquids and gases | ||
| Pressure rating [bar] | 160 | ||
| Note on pressure rating |
|
||
| Minimum installation depth [mm] | 15 |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Probe length L [mm] | 20 | ||
|---|---|---|---|
| Measuring range |
|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Reaction times
| Dynamic response T05 / T09 [s] | 1 / 3; (according to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 22831.05 |
Mechanical data
| Weight [g] | 132.5 |
|---|---|
| Material | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) electropolished |
| Tightening torque [Nm] | 30...50 |
| Process connection | threaded connection G 1/2 sealing cone |
| Surface characteristics Ra/Rz of the wetted parts | Ra: < 0.8 |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 20 |
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
