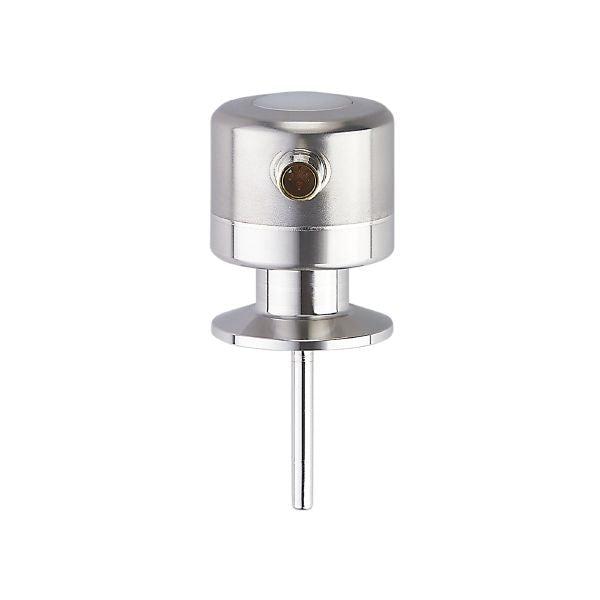

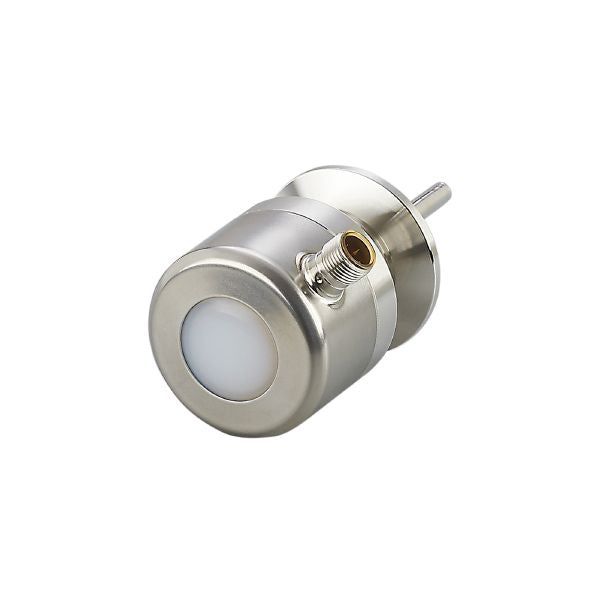

Ifm TCC831 Temperature Transmitter
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Communication interface | IO-Link | ||
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) | ||
| Installation length EL [mm] | 100 |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000 |
| Reference element | 1 x NTC |
| Media | liquids and gases |
| Pressure rating [bar] | 160 |
| Operating voltage [V] | 18...32 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | 10; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 6 |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | analog signal; IO-Link; calibration check status |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally closed; (diagnostic signal) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Diagnostic output | calibration check status and error diagnostics |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | (Ub - 15 V) x 50 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring range |
|
||
|---|---|---|---|
| Note on measuring range |
|
||
| Factory setting | -10...150 °C / 14...302 °F | ||
| Calibration check limit [K] | 0.5...3 | ||
| In steps of [K] | 0.05 |
| Resolution of analog output [K] | 0.05 |
|---|
| Precision analog output [K] | ± 0,2 |
|---|---|
| Precision IO-Link [K] | ± 0,2 |
| Temperature coefficient analog output [% of the span / 10 K] | < ± 0,02; (In case of deviation from the reference condition 25 ± 5 °C) |
| Temperature coefficient IO-Link [% of the span / 10 K] | < ± 0,01; (In case of deviation from the reference condition 25 ± 5 °C) |
| Dynamic response T05 / T09 [s] | 1,5 / 4 |
|---|
| Parameter setting options | Display unit; scaling of the analog output; calibration check limit; switching logic diagnostic output; simulation mode |
|---|
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Digital Measuring Sensor, Common Profile, Blob Transfer | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 1 | ||||
| Process data binary | 1 | ||||
| Min. process cycle time [ms] | 4.4 | ||||
| IO-Link resolution temperature [K] | 0.01 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...70 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40...100 | |
| Protection | IP 68; IP 69K |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
