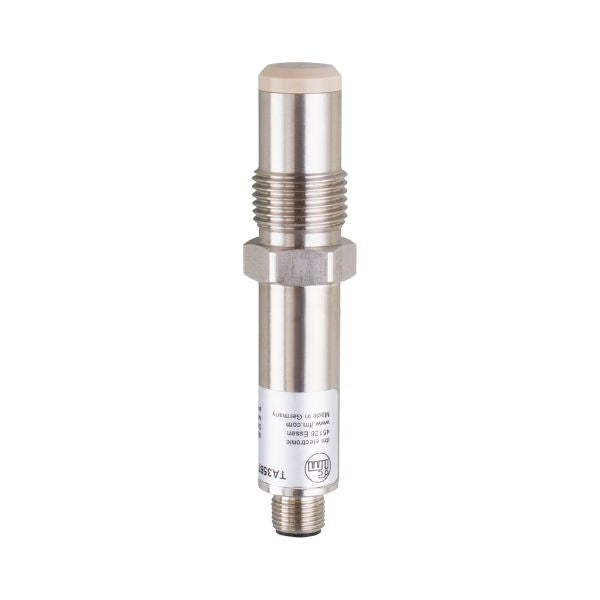

Ifm TA3597 Temperature Transmitter
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|---|
| Measuring range [°C] | 0...100 |
| Process connection | threaded connection G 1/2 sealing cone flush mountable |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Medium temperature [°C] | < 100; (< 5 min: 150) |
| Pressure rating [bar] | 16 |
| Operating voltage [V] | 18...32 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Measuring range [°C] | 0...100 |
|---|
| Precision analog output [K] | ± (0,25 K + 0,002 x|t|) |
|---|---|
| Temperature coefficient [% of the span / 10 K] | 0,1 |
| Dynamic response T05 / T09 [s] | 10 / 40; (for water (70 °C; 0,04 m/s)) |
|---|
| Ambient temperature [°C] | -20...70 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 69K; (in conjunction with a corresponding connector) |
| EMC |
|
|---|
| Weight [g] | 146.5 |
|---|---|
| Dimensions [mm] | Ø 18 |
| Material | stainless steel (1.4404 / 316L); PEEK |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); PEEK |
| Tightening torque [Nm] | 10 |
| Process connection | threaded connection G 1/2 sealing cone flush mountable |
| Surface characteristics Ra/Rz of the wetted parts | Ra: < 0.8 |
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
