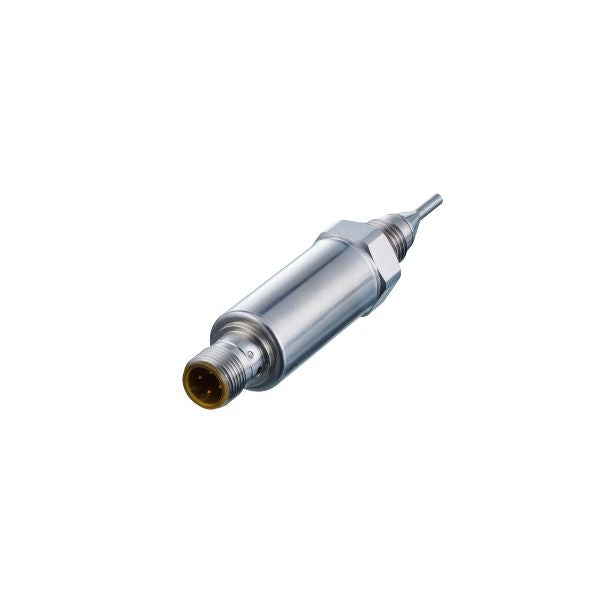

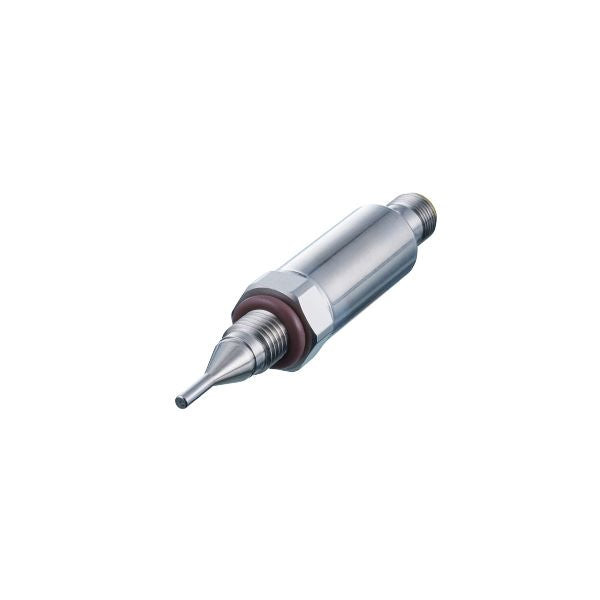

Ifm TA1102 Temperature Transmitter
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|---|
| Measuring range [°C] | -50...200 |
| Process connection | threaded connection M12 x 1,5 sealing cone |
| Installation length EL [mm] | 17 |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
|---|---|
| Media | liquids and gases |
| Pressure rating [bar] | 100 |
| Vacuum resistance [mbar] | -1000 |
| Operating voltage [V] | 18...32 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 2 |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal; IO-Link; (configurable) |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 250; ((18...19 V); 19...32 V: 300 Ω) |
| Short-circuit protection | yes |
| Overload protection | yes |
| Measuring range [°C] | -50...200 |
|---|---|
| Factory setting | 0...200 °C |
| Resolution of analog output [K] | 0.04 |
|---|
| Precision analog output [K] | ± 0,3 + (± 0,1 % MS) |
|---|---|
| Temperature coefficient [% of the span / 10 K] | 0,1; (In case of deviation from the reference condition 25 ± 5 °C) |
| Dynamic response T05 / T09 [s] | < 0,25 / < 1 |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Ambient temperature [°C] | -25...80 | |||
|---|---|---|---|---|
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -40...100 | |||
| Protection | IP 67; IP 68; IP 69K |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 334 | ||||
| Note on approval |
|
||||
| UL approval |
|
| Weight [g] | 111.5 |
|---|---|
| Material | stainless steel (1.4404 / 316L); PEI; FKM |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) electropolished |
| Tightening torque [Nm] | 20 |
| Process connection | threaded connection M12 x 1,5 sealing cone |
| Surface characteristics Ra/Rz of the wetted parts | Ra: < 0.8 |
| Probe diameter [mm] | 3 |
| Installation length EL [mm] | 17 |
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
