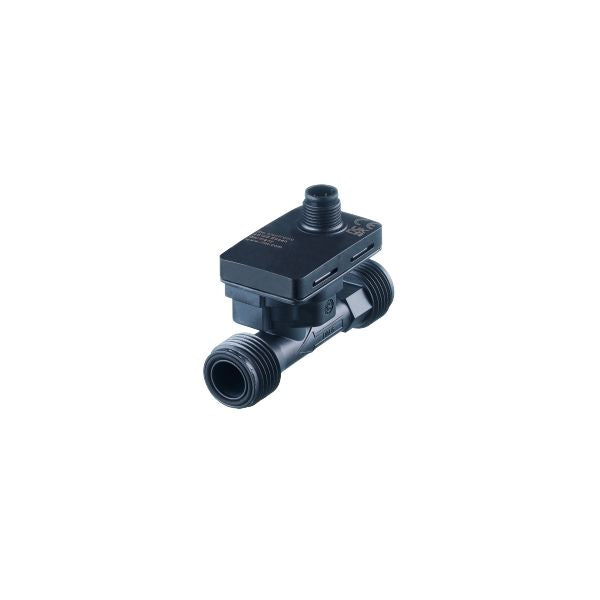

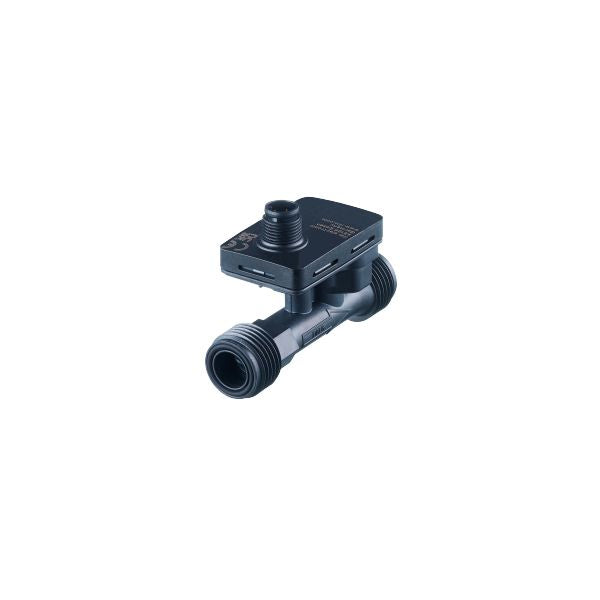

Ifm SV3151 Vortex Flow Meter

Name: Ifm SV3151 Vortex Flow Meter
Availability: BackOrder

SKU IF-SV3151-E

$138.89 USD - $138.89 USD

$138.89 USD

$138.89 USD - $138.89 USD

$138.89 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Number of inputs and outputs

Number of analog outputs: 1

Measuring range

0.5...10 l/min

0.074...1.474 m/s

Process connection

threaded connection G 1/2 DN6

Application

System

gold-plated contacts

Measuring element

1 x Pt 1000; (to DIN EN 60751, class B)

Application

for industrial applications

Installation

connection to pipe by means of an adapter

Media

ultra-pure water; water

Medium temperature [°C]

0...125

Min. bursting pressure

32.5 bar

3.25 MPa

Note on min. burst pressure

125 °C

Pressure rating

16 bar

1.6 MPa

Note on pressure rating

≤ 90 °C

Electrical data

Operating voltage [V]	8...33 DC
Current consumption [mA]	< 5
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Power-on delay time [s]	< 2
Measuring principle	Vortex

Inputs / outputs

Number of inputs and outputs	Number of analog outputs: 1

Outputs

Total number of outputs	1
Output signal	analog signal
Number of analog outputs	1
Analog current output [mA]	4...20; (Q [l/min] = 0,625 x (I - 4 mA))
Max. load [Ω]	< (Ub - 8 V) / 20 mA; Ub = 24 V: 800

Measuring/setting range

Measuring range

0.5...10 l/min

0.074...1.474 m/s

Temperature monitoring

Internal heating temperature probe	1 K/mW
Measuring range [°C]	0...125

Accuracy / deviations

Flow monitoring

Accuracy (in the measuring range)	Q < 50 % MEW: < 1 % MEW / Q > 50 % MEW: < 2 % MW; (water)
Repeatability	0,2; (% of the final value)

Temperature monitoring

Accuracy [K]	± 0,3 ± 0,005 x T

Reaction times

Flow monitoring

Response time [s]	0.28; (T09)

Temperature monitoring

Dynamic response T05 / T09 [s]	< 20 / < 50

Operating conditions

Ambient temperature [°C]

-15...85

Note on ambient temperature

Medium temperature > 0 °C: -40...85

Storage temperature [°C]

-40...85

Protection

IP 65

Cavitation

P(absolute) discharge / P(difference) > 5.5 to avoid cavitation

Tests / approvals

EMC

EN IEC 61326-1:2021

Shock resistance

DIN EN 60068-2-27

30 g (11 ms)

Vibration resistance

DIN EN 60068-2-6	with water / 10...61 Hz 1 mm
	with water / 61...2000 Hz 2 g

MTTF [years]

395.9

Pressure equipment directive

sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	70.6
Material	Housing: PPS 40% glass fiber; electronics: PC 10% glass fiber
Materials (wetted parts)	sensor: PPSU; Pipe section: PPS 40% glass fiber; sealing: EPDM
Tightening torque [Nm]	12
Process connection	threaded connection G 1/2 DN6

Remarks

MW = Measured value

MEW = Final value of the measuring range

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

pressure rating curve
