Ifm | SKU: IF-SU8021-E | Barcode: DOES NOT APPLY

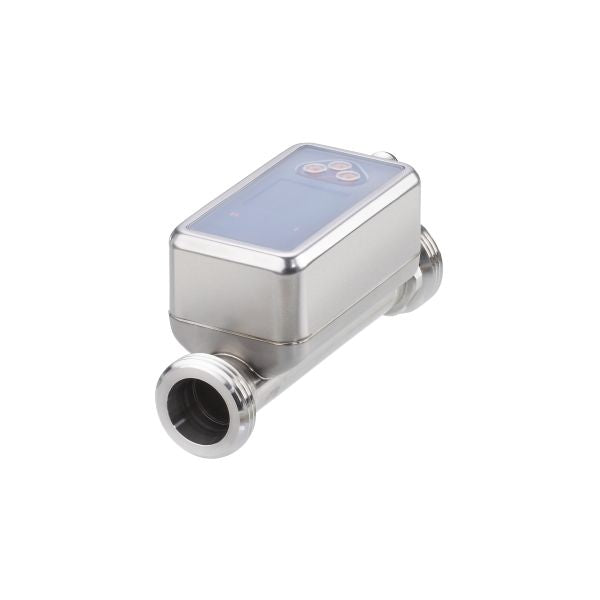

Ifm SU8021 Ultrasonic Flow Meter

Name: Ifm SU8021 Ultrasonic Flow Meter
Availability: BackOrder

$671.11 USD

Shipping calculated at checkout.

Ifm SU8021 Ultrasonic Flow Meter is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Measuring range

1...240 l/min

0.06...14.4 m³/h

16...3804 gph

0.26...63.4 gpm

Process connection

G 1 DN25 external thread

Application

System

gold-plated contacts

Media

ultra-pure water; water; water-based media

Note on media

water-based media: for media with >10 % additives, the repeatability is the only available value

Medium temperature

-20...100 °C

-4...212 °F

Min. bursting pressure

150 bar

15 MPa

Pressure rating

100 bar

10 MPa

Vacuum resistance [mbar]

-1000

MAWP (for applications according to CRN) [bar]

100

Electrical data

Operating voltage [V]	18...32 DC; (to SELV/PELV)
Current consumption [mA]	< 75
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	5
Measuring principle	ultrasonic

Inputs

Inputs	counter reset

Outputs

Total number of outputs	2
Output signal	analog signal; pulse signal; analog signal; IO-Link; frequency signal; diagnostic signal; totalizer switching signal
Electrical design	PNP/NPN
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	0...10000
Analog current output [mA]	4...20
Max. load [Ω]	500
Pulse output	flow rate meter
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Measuring/setting range

Measuring range

1...240 l/min

0.06...14.4 m³/h

16...3804 gph

0.26...63.4 gpm

Display range

-288...288 l/min

-17.28...17.28 m³/h

-4565...4565 gph

-76.08...76.08 gpm

Resolution

0.1 l/min

0.001 m³/h

1 gph

0.02 gpm

Set point SP

2.3...240 l/min

0.139...14.4 m³/h

37...3804 gph

0.61...63.4 gpm

Reset point rP

1.1...238.8 l/min

0.064...14.325 m³/h

17...3784 gph

0.28...63.07 gpm

Analog start point ASP

-240...192 l/min

-14.4...11.522 m³/h

-3804...3044 gph

-63.4...50.73 gpm

Analog end point AEP

-192...240 l/min

-11.522...14.4 m³/h

-3044...3804 gph

-50.73...63.4 gpm

Low flow cut-off LFC

1...12 l/min

0.06...0.72 m³/h

16...190 gph

0.26...3.17 gpm

Frequency end point, FEP

48.1...240 l/min

2.889...14.4 m³/h

763...3804 gph

12.72...63.4 gpm

Frequency at the end point FRP [Hz]

1...10000

Volumetric flow quantity monitoring

Pulse length [s]	0.002...2
Pulse value	0.02...99990000 l; 0.005...26414563.515 gal

Temperature monitoring

Measuring range

-20...100 °C

-4...212 °F

Display range

-44...124 °C

-47.2...255.2 °F

Resolution

0.1 °C

0.1 °F

Set point SP

-19.6...100 °C

-3.2...212 °F

Reset point rP

-20...99.6 °C

-4...211.2 °F

Analog start point

-20...76 °C

-4...168.8 °F

Analog end point
