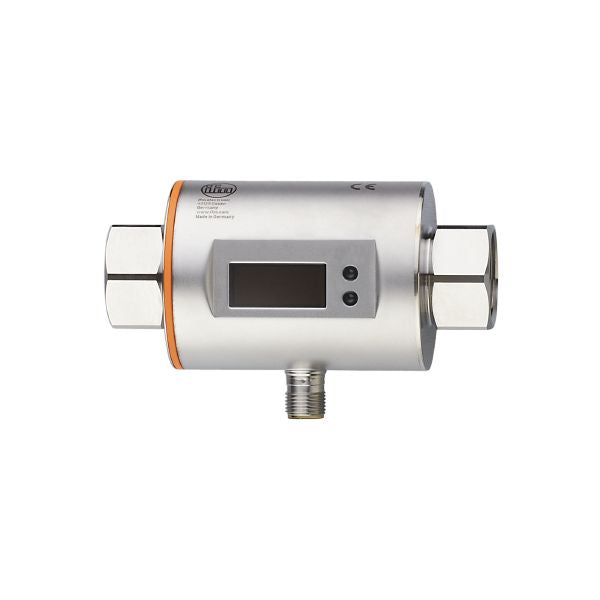

Ifm SM7601 Magnetic-Inductive Flow Meter
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Process connection | threaded connection 3/4" NPT DN20 |
| System | gold-plated contacts | ||
|---|---|---|---|
| Application | Totalizer function; for industrial applications | ||
| Media | Conductive liquids; water; water-based media | ||
| Note on media |
|
||
| Medium temperature [°F] | 14...158 | ||
| Pressure rating [bar] | 16 | ||
| Pressure rating [psi] | 232 | ||
| MAWP (for applications according to CRN) [bar] | 11.2 |
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | 95; ((24 )) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
| Inputs | counter reset |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 500 |
| Analog voltage output [V] | 0...10; (scalable) |
| Min. load resistance [Ω] | 2000 |
| Pulse output | flow rate meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| Analog start point ASP |
|
||
| Analog end point AEP |
|
||
| In steps of |
|
| Pulse value | 0.01...99 990 000 gal |
|---|---|
| Pulse length [s] | 0,005...2 |
| Measuring range [°F] | -4...176 |
|---|---|
| Resolution [°F] | 0.5 |
| Set point SP [°F] | -2.5...176 |
| Reset point rP [°F] | -3.5...175 |
| Analog start point [°F] | -4...140.5 |
| Analog end point [°F] | 31.5...176 |
| In steps of [°F] | 0.5 |
| Accuracy (in the measuring range) | ± (0,8 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
| Accuracy [K] | ± 2,5 (Q > 0,26 gpm) |
|---|
| Response time [s] | 0.15; (dAP = 0, T19) |
|---|---|
| Delay time programmable dS, dr [s] | 0...50 |
| Damping process value dAP [s] | 0...5 |
| Dynamic response T05 / T09 [s] | T09 = 20 (Q > 0,26 gpm) |
|---|
