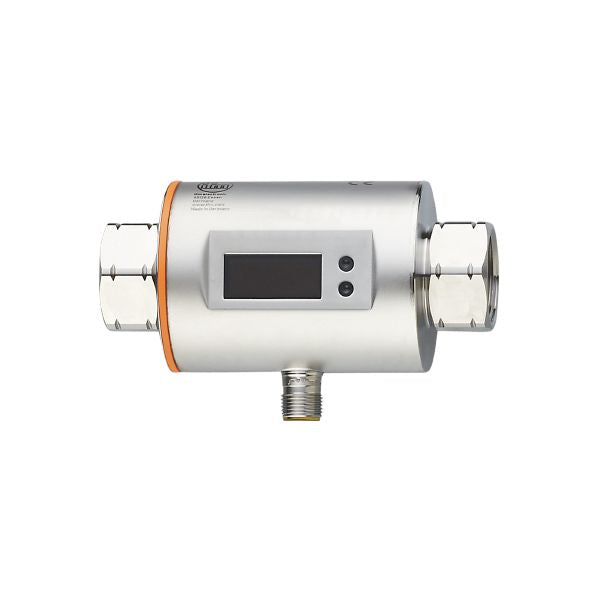

Ifm SM7500 Magnetic-Inductive Flow Meter

Ifm SM7500 Magnetic-Inductive Flow Meter

SKU IF-SM7500-E
$904.44 USD - $904.44 USD
$904.44 USD
$904.44 USD - $904.44 USD
$904.44 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Measuring range
0.2...50 l/min 0.01...3 m³/h
Process connection threaded connection Rc 3/4 Internal thread DN20
Application
System gold-plated contacts
Application Totalizer function; for industrial applications
Media Conductive liquids; water; water-based media
Note on media
conductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature [°C] -10...70
Pressure rating [bar] 16
Pressure rating [MPa] 1.6
Electrical data
Operating voltage [V] 18...30 DC; (to SELV/PELV)
Current consumption [mA] 95; (24 V)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 5
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Inputs
Inputs counter reset
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; pulse signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 200
Number of analog outputs 1
Analog current output [mA] 4...20; (scalable)
Max. load [Ω] 500
Analog voltage output [V] 0...10; (scalable)
Min. load resistance [Ω] 2000
Pulse output flow rate meter
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
0.2...50 l/min 0.01...3 m³/h
Display range
-60...60 l/min -3.6...3.6 m³/h
Resolution
0.1 l/min 0.001 m³/h
Set point SP
0.5...50 l/min 0.027...3 m³/h
Reset point rP
0.2...49.8 l/min 0.012...2.985 m³/h
Analog start point ASP
0...40 l/min 0...2.4 m³/h
Analog end point AEP
10...50 l/min 0.6...3 m³/h
In steps of
0.1 l/min 0.001 m³/h
Volumetric flow quantity monitoring
Pulse value 0.00001...50 000 m³
Pulse length [s] 0,005...2
Temperature monitoring
Measuring range [°C] -20...80
Resolution [°C] 0.2
Set point SP [°C] -19.2...80
Reset point rP [°C] -19.6...79.6
Analog start point [°C] -20...60
Analog end point [°C] 0...80
In steps of [°C] 0.2
Accuracy / deviations
Flow monitoring
Accuracy (in the measuring range) ± (0,8 % MW + 0,5 % MEW)
Repeatability ± 0,2% MEW
Temperature monitoring
Accuracy [K] ± 2,5 (Q > 5 l/min)
Reaction times
Flow monitoring
Response time [s] 0.15; (dAP = 0, T19)
Delay time programmable dS, dr [s] 0...50
Damping process value dAP [s] 0...5
Temperature monitoring
Dynamic response T05 / T09 [s] T09 = 20 (Q > 5 l/min)
Software / programming
Parameter setting options
