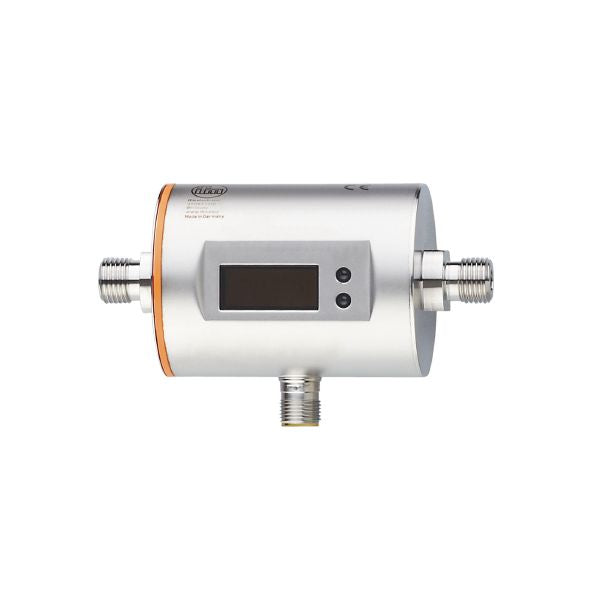

Ifm SM4100 Magnetic-Inductive Flow Meter
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Process connection | threaded connection G 1/4 DN6 flat seal |
| System | gold-plated contacts | ||
|---|---|---|---|
| Application | Totalizer function; for industrial applications | ||
| Installation | connection to pipe by means of an adapter | ||
| Media | Conductive liquids; water; water-based media | ||
| Note on media |
|
||
| Medium temperature [°C] | 0...60 | ||
| Pressure rating [bar] | 10 | ||
| Pressure rating [MPa] | 1 | ||
| MAWP (for applications according to CRN) [bar] | 5.5 |
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 80 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
| Inputs | counter reset |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 500 |
| Analog voltage output [V] | 0...10; (scalable) |
| Min. load resistance [Ω] | 2000 |
| Pulse output | flow rate meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring range |
|
||
|---|---|---|---|
| Display range [ml/min] | -1999...3600 | ||
| Resolution [ml/min] | 1 | ||
| Set point SP [ml/min] | 20...3000 | ||
| Reset point rP [ml/min] | 5...2984 | ||
| Analog start point ASP [ml/min] | 0...2400 | ||
| Analog end point AEP [ml/min] | 600...3000 | ||
| Low flow cut-off LFC [ml/min] | < 60 |
| Pulse value | 1...3000 ml |
|---|---|
| Pulse length [s] | 0,008...2 |
| Measuring range [°C] | -20...80 |
|---|---|
| Resolution [°C] | 0.2 |
| Set point SP [°C] | -19.2...80 |
| Reset point rP [°C] | -19.6...79.6 |
| Analog start point [°C] | -20...60 |
| Analog end point [°C] | 0...80 |
| In steps of [°C] | 0.2 |
| Accuracy (in the measuring range) | ± (2 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2 % MEW |
| Accuracy [K] | ± 2,5 (Q > 0,5 l/min) |
|---|
| Response time [s] | 0.15; (dAP = 0, T19) |
|---|---|
| Delay time programmable dS, dr [s] | 0...50 |
| Damping process value dAP [s] | 0...5 |
| Dynamic response T05 / T09 [s] | T09 = 40 (Q > 1 l/min) |
|---|
| Parameter setting options | Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / closed; switching logic; current/voltage/pulse output; Start-up delay; display can be deactivated; Display unit |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
