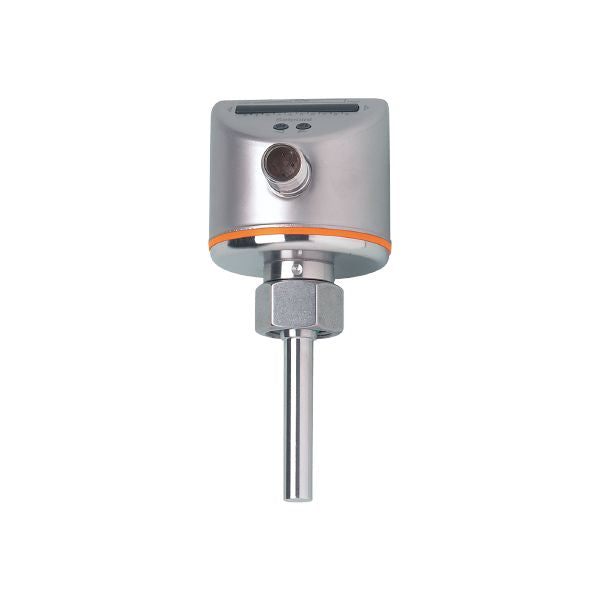

Ifm SI5010 Flow Monitor
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Process connection | M18 x 1,5 Internal thread |
| Media | Liquids; Gases |
|---|---|
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 300 |
| MAWP (for applications according to CRN) [bar] | 208 |
| Medium temperature [°C] | -25...80 |
|---|
| Medium temperature [°C] | -25...80 |
|---|
| Operating voltage [V] | 18...36 DC |
|---|---|
| Current consumption [mA] | < 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 10 |
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Probe length L [mm] | 45 |
|---|
| Setting range [cm/s] | 3...300 |
|---|---|
| Greatest sensitivity [cm/s] | 3...100 |
| Setting range [cm/s] | 200...3000 |
|---|---|
| Greatest sensitivity [cm/s] | 200...800 |
| Repeatability [cm/s] | 1...5 | ||
|---|---|---|---|
| Note on repeatability |
|
||
| Temperature drift [cm/s x 1/K] | 0.1; (for water 5...100 cm/s; 10...70 °C) | ||
| Max. temperature gradient of medium [K/min] | 300 | ||
| Switch point accuracy [cm/s] | ± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory setting) | ||
| Hysteresis [cm/s] | 2...5; (for water 5...100 cm/s; 25 °C; Factory setting) |
| Response time [s] | 1...10 |
|---|
| Response time [s] | 1...10 |
|---|
| Adjustment of the switch point | pushbuttons |
|---|
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 2 | ||||
| Process data binary | 2 | ||||
| Min. process cycle time [ms] | 3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -25...100 |
| Protection | IP 65; IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 298 |
| Weight [g] | 248.5 |
|---|---|
| Dimensions [mm] | M18 x 1.5 |
| Thread designation |
