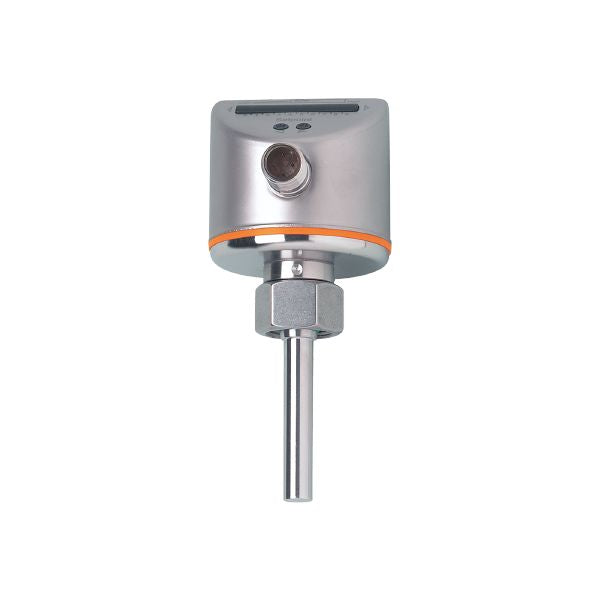

Ifm SI5004 Flow Transmitter
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|---|
| Process connection | M18 x 1,5 Internal thread |
| Media | Liquids |
|---|---|
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 300 |
| MAWP (for applications according to CRN) [bar] | 208 |
| Medium temperature [°C] | -25...80 |
|---|
| Operating voltage [V] | 19...36 DC |
|---|---|
| Current consumption [mA] | < 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 10 |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Overload protection | yes |
| Probe length L [mm] | 45 |
|---|
| Setting range [cm/s] | 3...300 |
|---|---|
| Greatest sensitivity [cm/s] | 3...100 |
| Repeatability [cm/s] | 1...5 | ||
|---|---|---|---|
| Note on repeatability |
|
||
| Temperature drift [cm/s x 1/K] | 0.1; (for water 5...100 cm/s; 10...70 °C) | ||
| Measuring error [% of the final value] | ± 2...± 10 |
| Response time [s] | 1...10 |
|---|
| Response time [s] | 1...10 |
|---|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -25...100 |
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 259 |
| Weight [g] | 230 |
|---|---|
| Dimensions [mm] | M18 x 1.5 |
| Thread designation | M18 x 1.5 |
| Material | stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A |
| Process connection | M18 x 1,5 Internal thread |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
