Ifm | SKU:
IF-SF121A-E

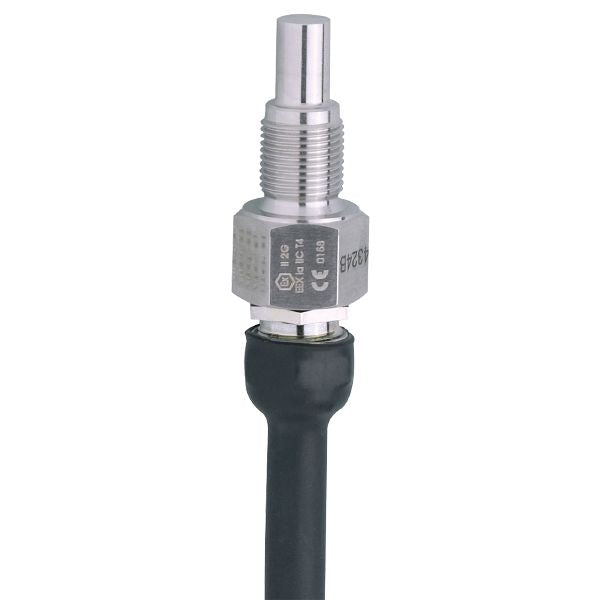

Ifm SF121A Flow Sensor For Connection To An Evaluation Unit
$556.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm SF121A Flow Sensor For Connection To An Evaluation Unit is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm SF121A Flow Sensor For Connection To An Evaluation Unit
$556.67 USD
Unit price
/
Unavailable
Product characteristics
| Probe length L [mm] | 12 |
|---|---|
| Process connection | M12 x 1 |
Application
| Media | Liquids; Gases |
|---|---|
| Medium temperature [°C] | -20...70 |
| Pressure rating [bar] | 30 |
Liquids
| Medium temperature [°C] | -20...70 |
|---|
Gases
| Medium temperature [°C] | -20...70 |
|---|
Electrical data
| Connection to control monitor | VS2000 Exi (PTB 01 ATEX 2075) |
|---|
Measuring/setting range
| Probe length L [mm] | 12 |
|---|
Liquids
| Setting range [cm/s] | 3...300 |
|---|---|
| Greatest sensitivity [cm/s] | 3...60 |
Gases
| Setting range [cm/s] | 200...2000 |
|---|---|
| Greatest sensitivity [cm/s] | 200...800 |
Accuracy / deviations
| Max. temperature gradient of medium [K/min] | 15 |
|---|
Reaction times
| Response time [s] | 1...10 |
|---|
Liquids
| Response time [s] | 1...10 |
|---|
Gases
| Response time [s] | 1...10 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | DMT 03 ATEX E091; IECEX BVS 06.0007 | ||
|---|---|---|---|
| ATEX marking |
|
||
| Shock resistance |
|
||
| Vibration resistance |
|
||
| MTTF [years] | 8648 |
Safety classification
| Max. internal capacitance [nF] | 1.2 |
|---|---|
| Max. internal inductance [µH] | 6 |
| Temperature class | T4 |
Mechanical data
| Weight [g] | 346 |
|---|---|
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Material | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) |
| Process connection | M12 x 1 |
| Installation length EL [mm] | 27 |
Remarks
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 6 m, TPE-S; Maximum cable length: 100 m; 5 x 0.34 mm² |
|---|
