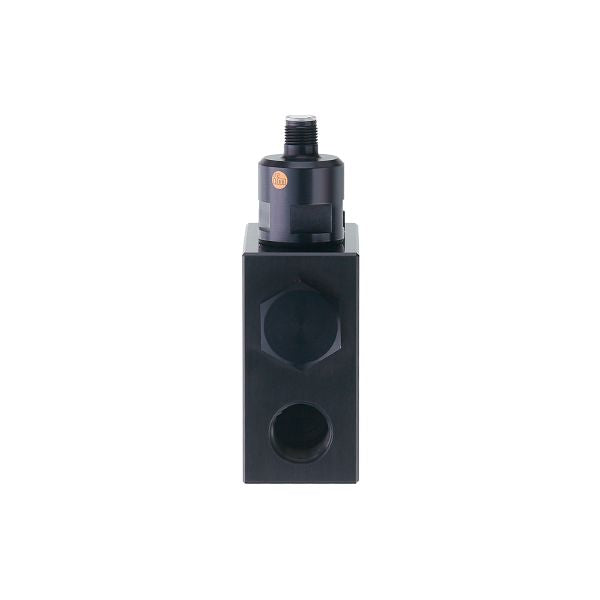

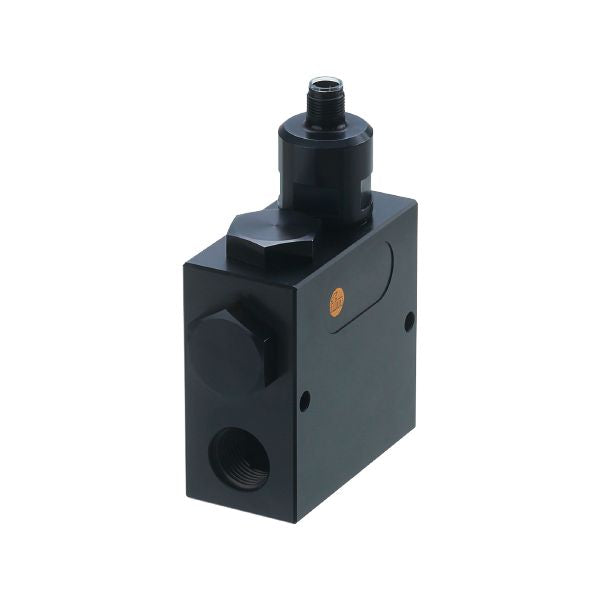

Ifm SBU624 Flow Transmitters With Fast Response Time
| Measuring range [l/min] | 0.3...50 |
|---|---|
| Process connection | G 1/2 |
| Application | Machine tools; Internal cooling of drill |
|---|---|
| Media | Liquids; water; glycol solutions; Coolants |
| Medium temperature [°C] | 0...60 |
| Pressure rating [bar] | 200 |
| Pressure rating [MPa] | 20 |
| Operating voltage tolerance [%] | -15...10 |
|---|---|
| Operating voltage [V] | 24 DC; (to SELV/PELV) |
| Current consumption [mA] | 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Output signal | analog signal |
|---|---|
| Analog voltage output [V] | 0.5...10 |
| Min. load resistance [Ω] | 10000 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Measuring range [l/min] | 0.3...50 |
|---|---|
| Flow range [l/min] | 75 |
| Repeatability [% of the final value] | 1 |
|---|---|
| Measuring error [% of the final value] | ± 5 |
| Response time [s] | < 0.01 |
|---|
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -15...80 |
| Protection | IP 65; IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 15.78 |
| Weight [g] | 737 |
|---|---|
| Material | aluminum anodized; PA |
| Materials (wetted parts) | stainless steel (1.4401 / 316); brass; aluminum anodized; PU; O-ring: FKM |
| Process connection | G 1/2 |
| Switching cycles mechanical | 10 million |
| Items supplied |
|
|---|
| Remarks |
|
||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
|
|
|
|---|
