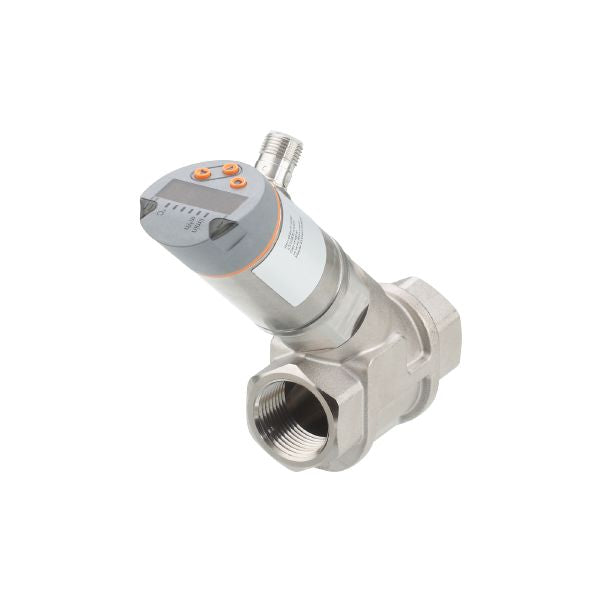

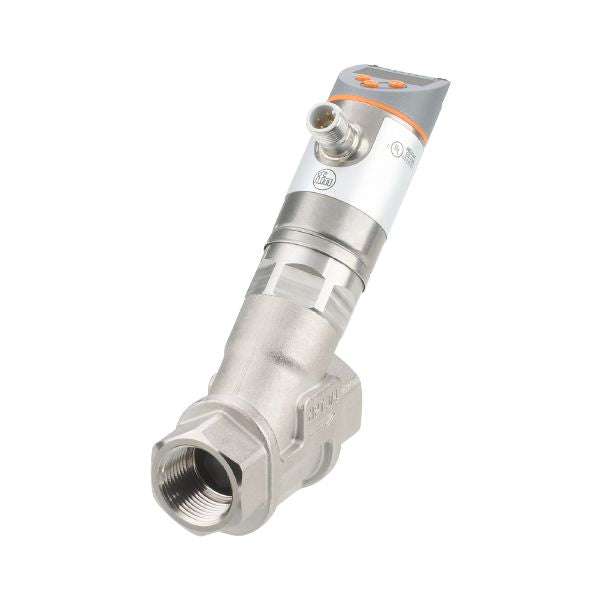

Ifm SBN232 Flow Meter With Fast Response And Display
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Process connection | threaded connection 3/4" NPT |
| System | gold-plated contacts | ||
|---|---|---|---|
| Application | for industrial applications | ||
| Media | Liquids; water; glycol solutions; Coolants | ||
| Note on media |
|
||
| Medium temperature [°F] | 14...212 | ||
| Pressure rating [bar] | 40 | ||
| Pressure rating [MPa] | 4 | ||
| MAWP (for applications according to CRN) [bar] | 40 |
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 3 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; frequency signal; IO-Link; (configurable) |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 150; (per output 2 x 200 (...140 °F); 2 x 250 (...104 °F)) |
| Switching cycles (mechanical) | 10 million |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Frequency of the output [Hz] | 0...10000 |
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| Frequency end point, FEP |
|
||
| In steps of |
|
||
| Frequency at the end point FRP [Hz] | 10...10000 | ||
| Measuring dynamics | 1:50 |
| Measuring range [°F] | 14...212 |
|---|---|
| Display range [°F] | -26...252 |
| Resolution [°F] | 2 |
| Set point SP [°F] | 16...212 |
| Reset point rP [°F] | 14...210 |
| In steps of [°F] | 2 |
| Frequency start point, FSP [°F] | 14...172 |
| Frequency end point, FEP [°F] | 54...212 |
| Frequency at the end point FRP [Hz] | 10...10000 |
| Accuracy (in the measuring range) | ± (4 % MW + 1 % MEW); (Q > 0,3 l/min; medium and operating temperature: +71,6 °F ± 4K) |
|---|---|
| Repeatability | ± 1 % MEW |
| Temperature drift | 0,9802 °F / K |
|---|---|
| Accuracy [K] | 3 K (77 °F; Q > 1 l/min) |
| Response time [s] | 0.01 |
|---|---|
| Damping process value dAP [s] | 0...5 |
| Damping for the analog output dAA [s] | 0...5 |
| Dynamic response T05 / T09 [s] | T09 = 120 (Q > 1 l/min) |
|---|
| Parameter setting options | hysteresis / window; normally open / closed; switching logic; current output; medium selection; damping for the switching output / analog output; display can be rotated and switched off; standard unit of measurement; process value color |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
