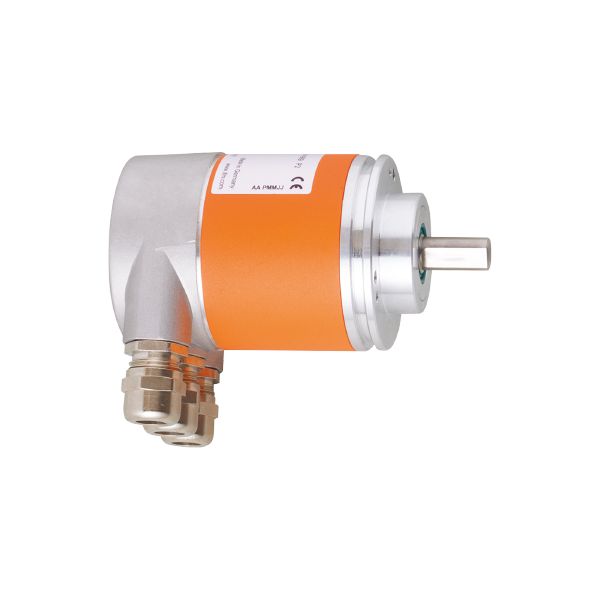

Ifm RM7012 Absolute Multiturn Encoder With Solid Shaft

SKU IF-RM7012-E
Original price $0 USD
Original price $993.33 USD - Original price $993.33 USD
Original price
Current price $993.33 USD
$993.33 USD - $993.33 USD
Current price $993.33 USD
Availability:
0 in stock, ready to be shipped
Pre Order

Payment option

Why wait when you can be ahead of the game?
Lead Time - 1 to 2 Weeks

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Resolution 8192 steps; 4096 revolutions; 25 bit
Communication interface CAN
Shaft design solid shaft
Shaft diameter [mm] 10
Application
Function principle absolute
Revolution type multiturn
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 230; ((10 V DC); 100 (24 V DC))
Reverse polarity protection yes
Outputs
Code binary
Measuring/setting range
Resolution 8192 steps; 4096 revolutions; 25 bit
Software / programming
Parameter setting options CAN parameter; scaling; preset; Baud rate; Direction of rotation; Node ID
Addressing address selector switch; 0...126
Interfaces
Communication interface CAN
CAN
Protocol CANopen
Factory settings
Baud rate: 125 kBit/s
node ID: 32
Version DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0
Operating conditions
Ambient temperature [°C] -40...85
Max. relative air humidity [%] 98
Protection IP 65; (on the housing: IP 65; on the shaft: IP 64)
Tests / approvals
Shock resistance
100 g (6 ms)
Vibration resistance
10 g (10...1000 Hz)
MTTF [years] 13
Mechanical data
Weight [g] 592.5
Dimensions [mm] Ø 58 / L = 110
Material aluminum
Max. revolution, mechanical [U/min] 6000
Shaft design solid shaft
Shaft diameter [mm] 10
Shaft material
steel (1.4104)
Max. shaft load axial (at the shaft end) [N] 40
Max. shaft load radial (at the shaft end) [N] 110
Fixing flange Clamping flange
Displays / operating elements
Display
Preoperational Mode LED, green flashing
Operational Mode LED, green
Error message LED, red flashing
Electrical connection
Terminal strip in the terminal chamber:
