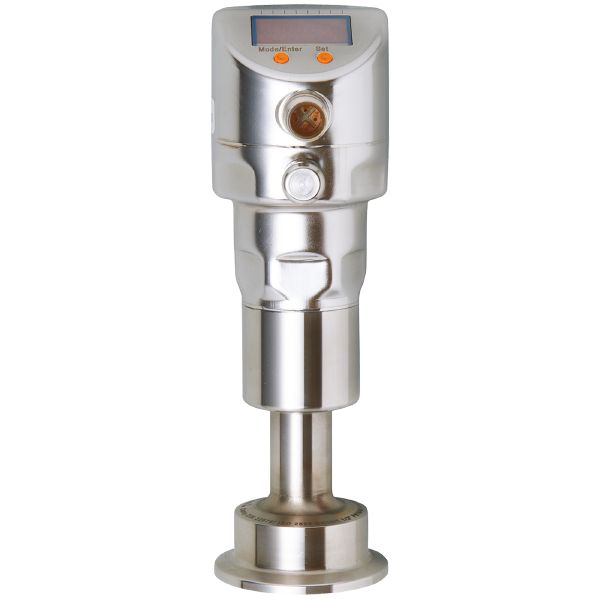

Ifm PI2206 Flush Pressure Sensor With Display

Name: Ifm PI2206 Flush Pressure Sensor With Display
Availability: BackOrder

SKU IF-PI2206-E

$1,106.67 USD - $1,106.67 USD

$1,106.67 USD

$1,106.67 USD - $1,106.67 USD

$1,106.67 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2; Number of analog outputs: 1

Measuring range

-0.124...2.5 bar

-1.8...36.27 psi

-12.4...250 kPa

Process connection

Clamp DN40 (1,5") DIN 32676 (ISO 2852)

Application

System

gold-plated contacts

Application

flush mountable for the food and beverage industry

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-20...200

Min. bursting pressure

50 bar

725 psi

5000 kPa

Pressure rating

20 bar

290 psi

2000 kPa

Type of pressure

relative pressure

Electrical data

Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

2-wire

Operating voltage [V]	20...32 DC
Current consumption [mA]	3.6...21
Power-on delay time [s]	1

3-wire

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 45
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analog outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analog signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / closed; (configurable)
Number of analog outputs	1
Analog current output [mA]	4...20, invertible; (scalable)
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

2-wire

Max. load [Ω]	300

3-wire

Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	125
Max. load [Ω]	(Ub - 10 V) / 20 mA

Measuring/setting range

Measuring range

-0.124...2.5 bar

-1.8...36.27 psi

-12.4...250 kPa

Set point SP

-0.12...2.5 bar

-1.74...36.27 psi

-12...250 kPa

Reset point rP

-0.124...2.496 bar

-1.8...36.21 psi

-12.4...249.6 kPa

Analog start point

-0.124...1.88 bar

-1.8...27.27 psi

-12.4...188 kPa

Analog end point

0.5...2.5 bar

7.26...36.27 psi

50...250 kPa

In steps of

0.002 bar

0.03 psi

0.2 kPa

Factory setting

	SP1 = 0.624 bar	rP1 = 0.574 bar
	SP2 = 1.874 bar	rP2 = 1.824 bar
	ASP = 0.000 bar	AEP = 2.500 bar

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,2; (Turn down 1:1)
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2; (0...200 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,15; (0...200 °C)

Reaction times

Damping process value dAP [s]	0...30
Damping for the analog output dAA [s]	0.01...99.99

2-wire

Step response time analog output [ms]	45
