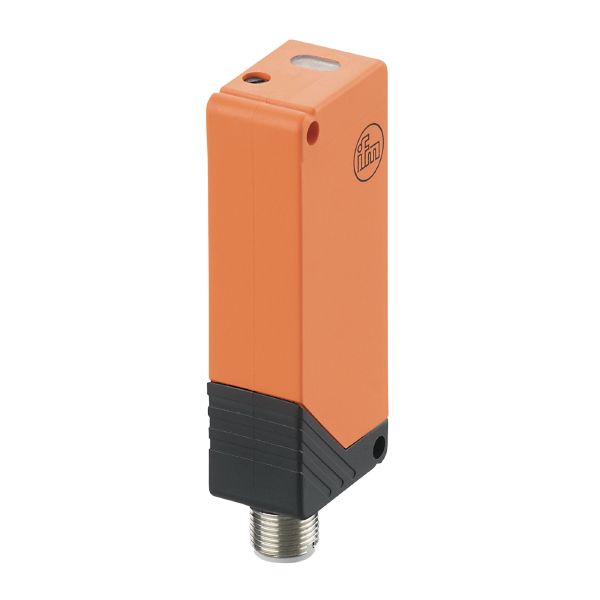

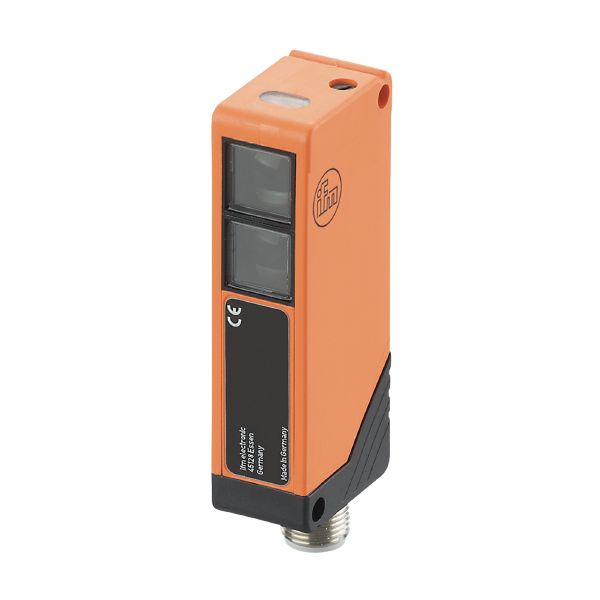

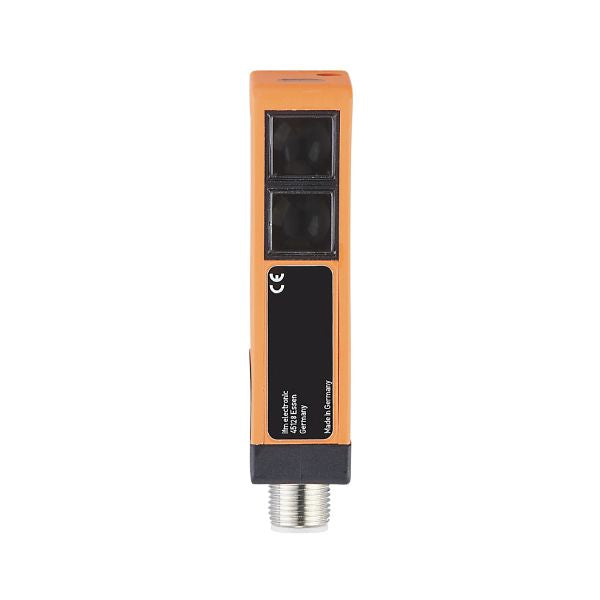

Ifm OT5003 Diffuse Reflection Sensor

SKU IF-OT5003-E
Original price $0 USD
Original price $339.44 USD - Original price $339.44 USD
Original price
Current price $339.44 USD
$339.44 USD - $339.44 USD
Current price $339.44 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Type of light Infrared light
Housing rectangular
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...50 DC
Current consumption [mA] 40; ((24 V))
Protection class II
Reverse polarity protection yes
Type of light Infrared light
Wave length [nm] 880
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 150
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 4...200; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 187
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 583
Mechanical data
Weight [g] 146.5
Housing rectangular
Dimensions [mm] 75 x 19 x 30
Material PBT
Lens material
PMMA
Lens alignment Side sensing
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Accessories
Items supplied
Angle bracket: 1, E20461
screwdrivers
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
