Ifm | SKU:
IF-O6S305-E

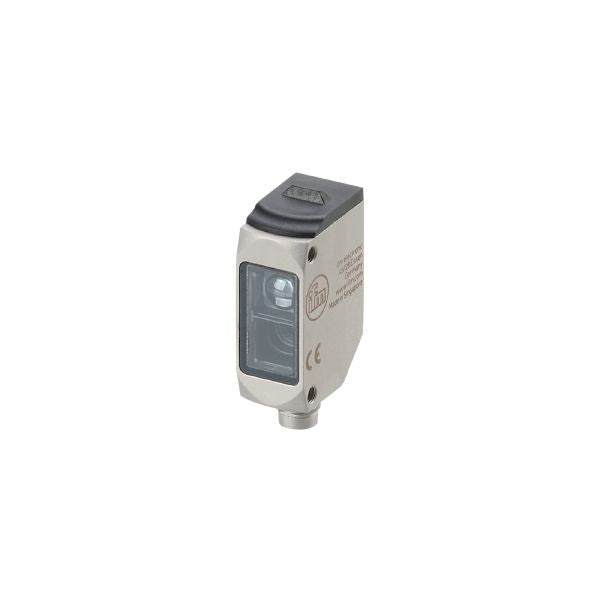

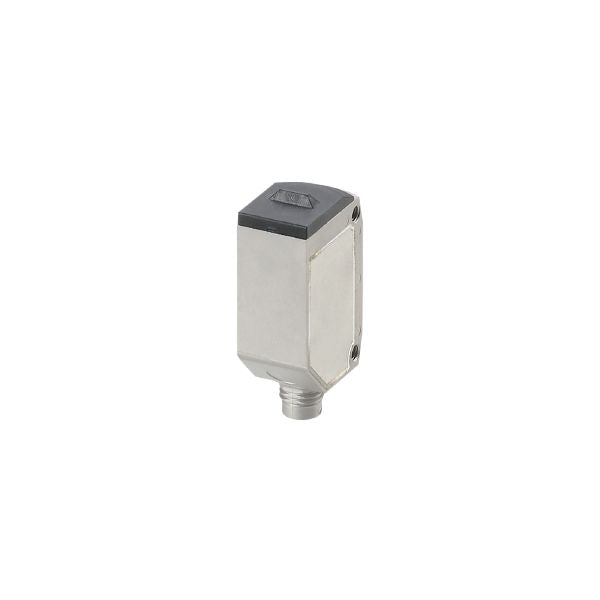

Ifm O6S305 Through-Beam Sensor Transmitter
$103.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm O6S305 Through-Beam Sensor Transmitter is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O6S305 Through-Beam Sensor Transmitter
$103.33 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 11; ((24 V)) |
| Protection class | III |
| Type of light | red light |
| Wave length [nm] | 633 |
Monitoring range
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 10 |
| Max. light spot diameter [mm] | 300 |
| Light spot dimensions refer to | at maximum range |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 2.5 | ||||
| IO-Link process data (cyclical) |
|
||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1239 | ||
| UL approval |
|
Mechanical data
| Weight [g] | 33.8 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 34.8 x 13 x 21 | |
| Material | housing: stainless steel (1.4404 / 316L); plastics: PPSU; sealing: EPDM | |
| Lens material |
|
|
| Lens alignment | Side sensing | |
| Tightening torque [Nm] | 1; (screws) |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
Diagrams and graphs
|
excess gain graph
|
|
|---|
