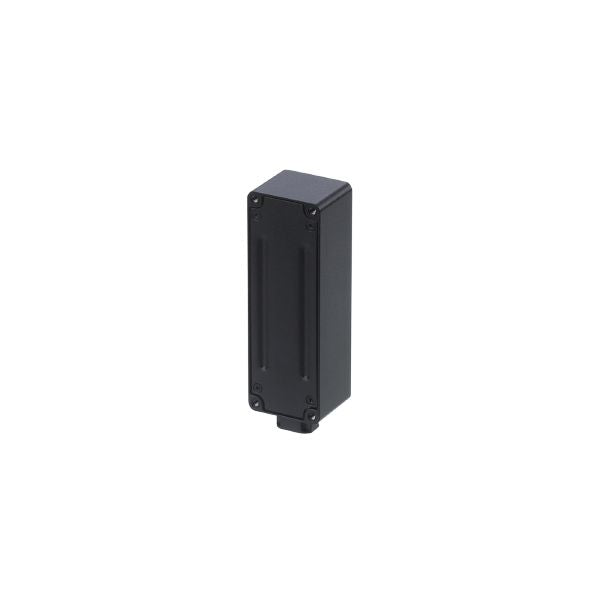

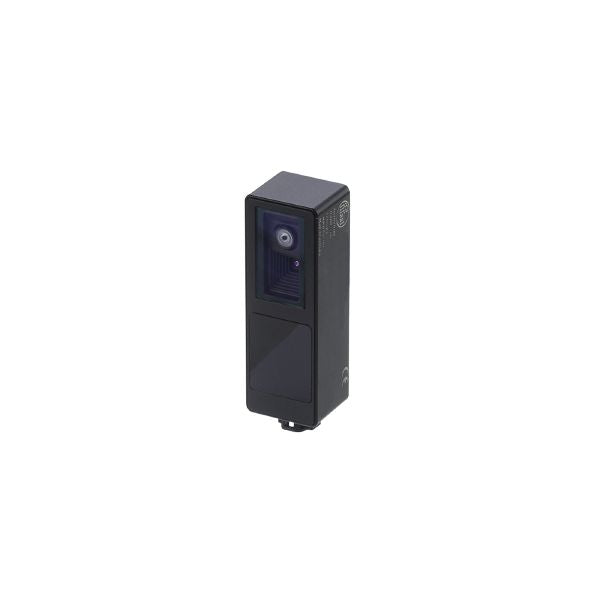

Ifm O3R222 3D Camera

Name: Ifm O3R222 3D Camera
Availability: BackOrder

$305.56 USD

Shipping calculated at checkout.

Ifm O3R222 3D Camera is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Image resolution [px]	1280 x 800
Image resolution 3D [px]	224 x 172
Angle of aperture [°]	128 x 80
Angle of aperture 3D [°]	60 x 45
Image repetition frequency [Hz]	20
Image repetition frequency 3D [Hz]	20

Electrical data

Operating voltage [V]	19.2...28.8 DC
Max. current consumption [mA]	800
Power consumption [W]	8.6; ((FPS x 0,32) + 2,2; FPS = Framerate Head)
Image sensor	PMD 3D ToF-Chip / 2D Chip
Integrated lighting	yes; (infrared: 940 nm invisible radiation)

Monitoring range

Image resolution [px]	1280 x 800
Image resolution 3D [px]	224 x 172
Angle of aperture [°]	128 x 80
Angle of aperture 3D [°]	60 x 45
Image repetition frequency [Hz]	20
Image repetition frequency 3D [Hz]	20

Interfaces

Transmission standard	FPD-Link
Type of connector	HFM (Mini-Fakra)

Operating conditions

Ambient temperature [°C]	-10...40
Storage temperature [°C]	-40...85
Protection	IP 54

Tests / approvals

EMC

EN IEC 61000-6-4	radiation of interference / residential, commercial and light-industrial environments
EN IEC 61000-6-2	noise immunity / industrial environments

Shock resistance

EN 60068-2-27	50 g / (11 ms) not repetitive
EN 60068-2-27	40 g / (6 ms) repetitive

Vibration resistance

EN 60068-2-6	2 g / (10...150 Hz)
EN 60068-2-64	2.3 g RMS / (10...500 Hz)

Laser protection class

Notes on laser protection

Caution:	invisible laser radiation
laser class:	1
	IEC 60825-1:2014
	Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.

Electrical safety

EN 61010-2-201

electrical supply only via PELV circuits

Mechanical data

Weight [g]	187.9
Dimensions [mm]	90 x 31 x 26
Material	housing: diecast zinc coated; Cover: PMMA; window: glass / PMMA; rear of the housing: aluminum coated
Tightening torque [Nm]	< 0.8

Remarks

Pack quantity	1 pcs.

Electrical connection - 2D/3D camera

	Connector: 1 x Dual-HFM (AMK142-1M4Z5-A)

Other data

Field of view size

Measuring range / distance [m]	Length [m]	Width [m]
1.00	1.15	0.80
2.00	2.30	1.65
3.00	3.45	2.50
4.00	4.60	3.30
5.00	5.80	4.15
6.00	6.95	4.95
7.00	8.10	5.80

repeatability of the distance measurement of an individual pixel

Measuring range / distance [m]	repeatability of the measured distance values on grey objects (18% reflectivity) [mm]	Accuracy [mm]
	typical value	typical value
0...1	± 5	± 9
1...2	± 6	± 10
2...3	± 9	± 12
3...4	± 13	± 13
4...5	± 19	± 15
5...6	± 27	± 16
6...7	± 36	± 18

object in centre of the image
Ambient temperature	20° C
measured at a reflectivity of 18% to 90%
The repeatability can be optimized with filter functions

Temperature drift

Temperature range	-10...40 °C
Temperature drift [mm/K]	0.1
