Ifm | SKU:
IF-M9H210-E

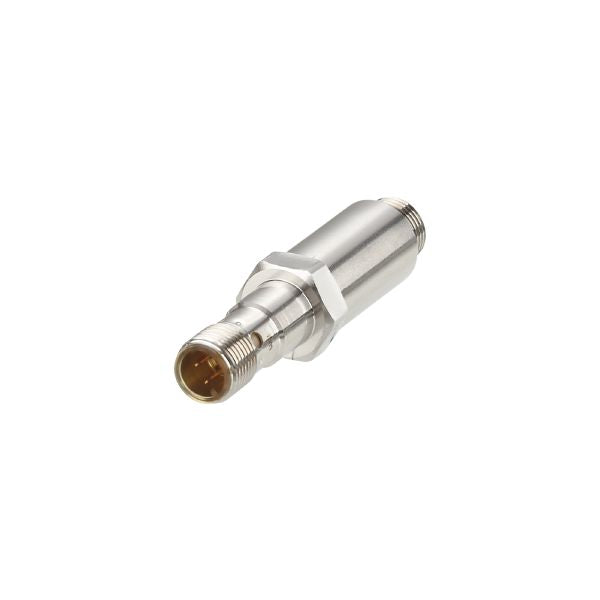

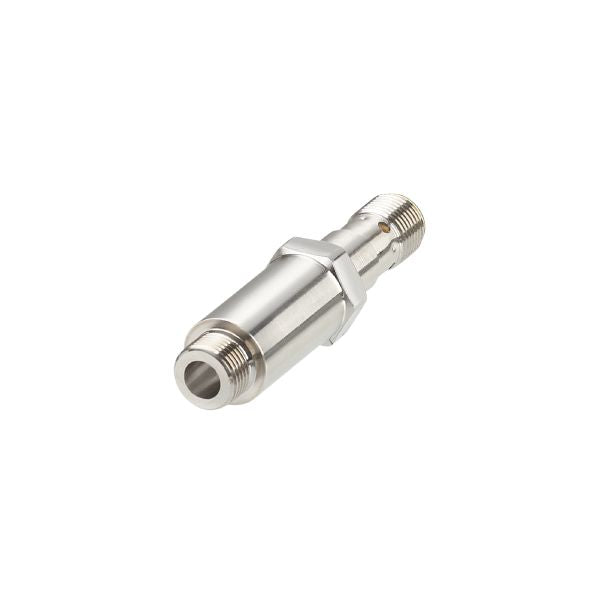

Ifm M9H210 Position Sensor
$165.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm M9H210 Position Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm M9H210 Position Sensor
$165.00 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Dimensions [mm] | M12 x 1 / L = 68.5 |
Application
| System | gold-plated contacts |
|---|---|
| Application | lubricant distributor with plunger |
| Media | Detects ferrous metals |
| Pressure rating [bar] | 350 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Rated insulation voltage [V] | 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 300 |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 5.9 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 0.8 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Real sensing range Sr [mm] | 2 ± 10 % |
|---|---|
| Operating distance [mm] | 0...1.62 |
Accuracy / deviations
| Hysteresis [% of Sr] | 3...15 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||||
| Shock resistance |
|
||||||||||||
| Continuous shock resistance |
|
||||||||||||
| MTTF [years] | 828 |
Mechanical data
| Weight [g] | 60.2 |
|---|---|
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 68.5 |
| Thread designation | M12 x 1 |
| Material | sensing face: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L); LED window: PEI |
| Tightening torque [Nm] | < 10 |
| Process connection | threaded connection M12 x 1 external thread |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
