Ifm | SKU: IF-GI855S-E | Barcode: DOES NOT APPLY

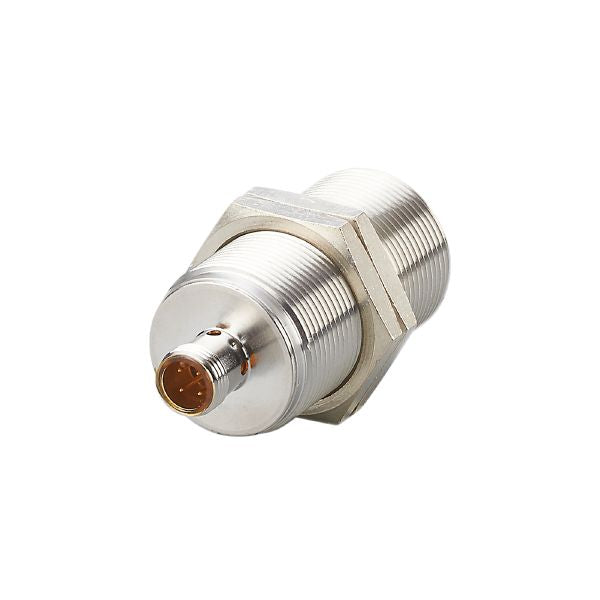

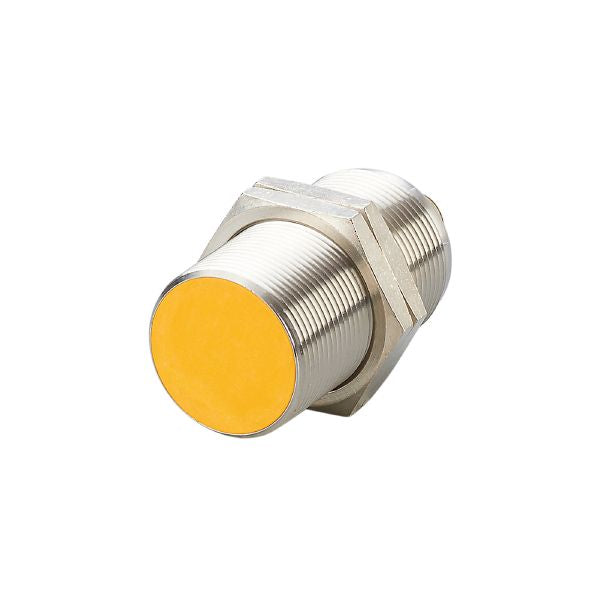

Ifm GI855S Fail-Safe Inductive Sensor

Name: Ifm GI855S Fail-Safe Inductive Sensor
Availability: BackOrder

$181.67 USD

Shipping calculated at checkout.

Ifm GI855S Fail-Safe Inductive Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP
Output function	2 x OSSD (A1 and A2)
Enable zone [mm]	> 14.5
Housing	Threaded type
Dimensions [mm]	M30 x 1.5 / L = 65

Application

System	gold-plated contacts
Type of operation	permanent operation
Safety-related function	safe state when damped correctly
Application	Use in mobile and harsh applications

Electrical data

Operating voltage [V]	8...32 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	1000

Outputs

Electrical design	PNP
Output function	2 x OSSD (A1 and A2)
Max. voltage drop switching output DC [V]	2.5; (30 mA)
Minimum load current [mA]	1
Permanent current rating of switching output DC [mA]	50
Switching frequency DC [Hz]	10
Output data	Interface type C class 1
Output voltage at 24 V	compatible with EN 61131-2 inputs type 1, 2
Short-circuit protection	yes
Overload protection	yes
Max. capacitive load CL_max [nF]	20

Monitoring range

Enable zone [mm]	> 14.5
Safe switch-off distance s(ao) [mm]	< 8

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.4
Hysteresis [% of Sr]	1...10

Reaction times

Response time to safety request [ms]	5
Response time when approaching the enable zone [ms]	5
Risk time (response time for safety-related faults) [ms]	100

Operating conditions

Ambient temperature [°C]

-40...85

Max. relative air humidity [%]

50; (70 °C; <70 °C: >50 %)

Max. height above sea level [m]

5000

Ionizing radiation

not permissible

Protection

IP 65; IP 67; IP 68; IP 69K; (with ifm socket duly screwed on)

Chemical media

test according to ISO 16750-5

the following media were tested for 22 hours at 60 °C	Coolants
	(HoughtonHocut4480
	Oemeta
	HYCUT ET 46)
The following media were tested for 22 hours at 75 °C	hydraulic fluids
	(Fuchs Renoling B15 VG 46 HLP
	Total BiohydranTMP 4HEES
	Fuchs Hydrotherm 46 M HFC)
	transmission oils
	(Fuchs TITAN ATF 3353 Dexron III)
	diesel
	biodiesel
	urea
	(AdBlue)
	brake fluid
	(K2 TURBO DOT 4)
the following media were tested for 22 hours at 23 °C	corrosion protection
	(Sonax special preservation wax )
	cold cleaner
	(Sonax cold cleaner S )
	ammonia-based cleaner
	(Weco Dr. Webers Salmiak-Konzentrat (concentrated ammonium chloride) )
	battery acid
the following media were tested for 2 hours at 23 °C	wheel rim cleaner
	(Sonax Xtreme Plus)
the following media were tested for 10 minutes at 23 °C	premium-grade petrol lead-free

Tests / approvals

EMC

industrial environments
EN 60947-5-3
EN 61000-4-2 ESD	6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	20 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	2 kV
EN 61000-4-6 HF conducted	10 V
EN 61000-4-8	30 A/m 50/60 Hz / 1000 A/m 0 Hz
EN 55011	class B
Mobile applications	only for operation with central load-dump suppression (58 V) / not for active operation during motor start phase in 12 V systems
ISO 10605 ESD	8 kV CD / 15 kV AD
ISO 11452-2, ISO 11452-5 radiated immunity	100 V/m
ISO 7637-2, ISO 16750-2 conducted immunity	12 V / 24 V
pulse	1 2a 3a 3b 4 5b
Severity level	III III III III III III 58V
Failure criterion	B B B A A C/B A
EN 55025

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes

Broadband noise

EN 60068-2-64 h

5,9 g (10...2000 Hz) / effective acceleration for chassis mounting
