Ifm | SKU: IF-E80377-E | Barcode: DOES NOT APPLY

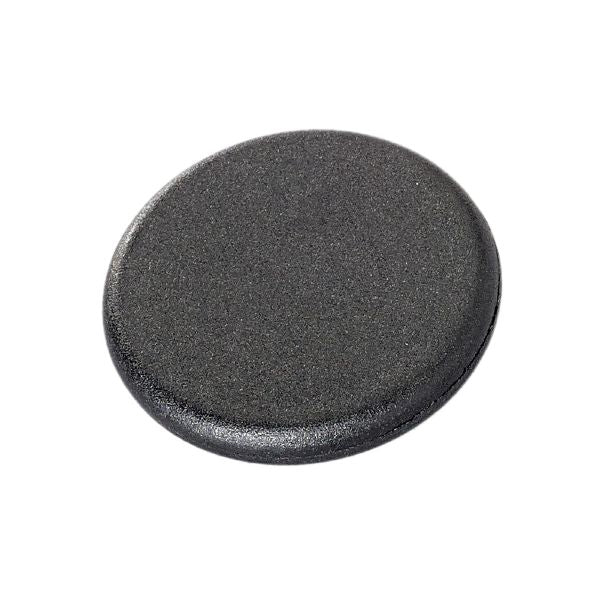

Ifm E80377 Rfid Tag

Name: Ifm E80377 Rfid Tag
Availability: BackOrder

$13.89 USD

Shipping calculated at checkout.

Ifm E80377 Rfid Tag is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Application

Operating temperature (active) [°C]	-40...85
Peak temperature (passive) [°C]	90; (duration of test: 1 x 100 h)

Electrical data

Operating frequency [MHz]	13,56
Memory size [bit]	2528
Memory type	EEPROM
Chip type	ICODE SLIX
Number of the blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...90
Protection	IP 68

Tests / approvals

Radio approval	ISO 15693

Mechanical data

Weight [g]	2.9
Type of mounting	installation on non-metal materials; (sticking to a surface)
Dimensions [mm]	Ø 20 / L = 3
Material	PPA

Remarks

Pack quantity	1 pcs.

Other data

Reading distance when mounted on non-metal (mm)

ANT410 / DTI410	14
ANT411 / DTI411	20
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	12
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	30
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	25
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	40
ANT513 / DTI513 / DTC510	50
ANT515 / DTI515 / ANT516 / DTI516	25
ANT600 / DTI600	110
