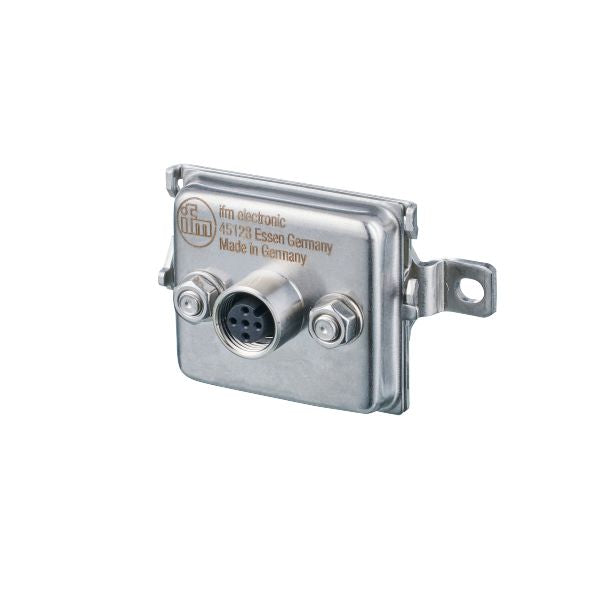

Ifm E75354 As-Interface Flat Cable Insulation Displacement Connector
$52.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm E75354 As-Interface Flat Cable Insulation Displacement Connector is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm E75354 As-Interface Flat Cable Insulation Displacement Connector
$52.22 USD
Unit price
/
Unavailable
Application
| Design | AS-i |
|---|---|
| Application | sanitary and wet areas in the food industry |
Electrical data
| Operating voltage [V] | 26.5...31.6 DC; (AS-i) |
|---|---|
| Protection class | III |
| Operating voltage AUX DC [V] | 18...32 |
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Max. relative air humidity [%] | 80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67; IP 68; IP 69K |
| Degree of soiling | 2 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 104.3 |
|---|---|
| Material | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM |
| Tightening torque [Nm] | 2.5; (lock nuts) |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Socket
| Connection | Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
