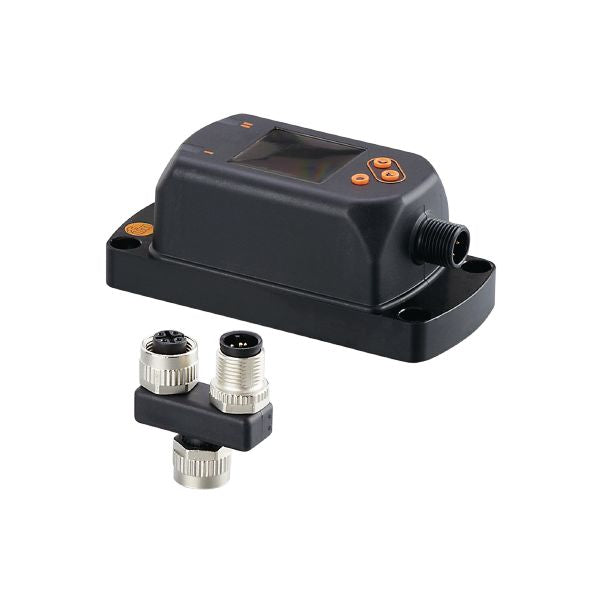

Ifm E30430 Io-Link Display
$201.11 USD
Unit price
/
Unavailable
Application
| System | gold-plated contacts |
|---|---|
| Application | display of all process values of a connected sensor |
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 47 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Software / programming
| Parameter setting options | display, indication |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 11.2 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 397 |
Mechanical data
| Weight [g] | 204 |
|---|---|
| Material | stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M12; Contacts: gold-plated |
