Ifm | SKU:
IF-E18060-E

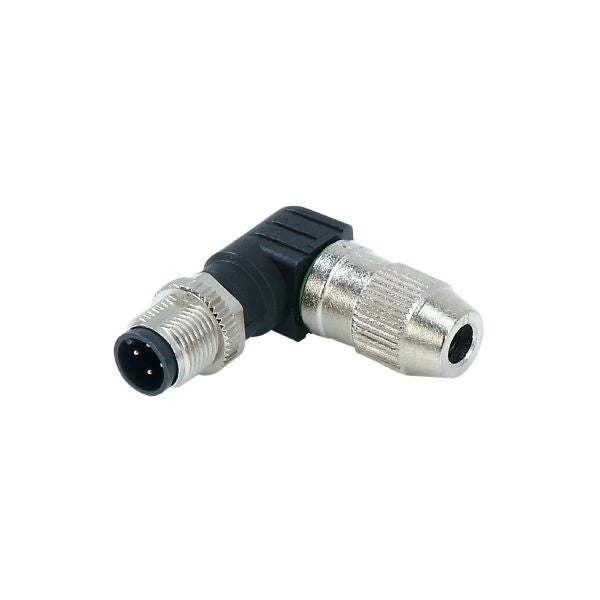

Ifm E18060 Wirable Plug
$26.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm E18060 Wirable Plug is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm E18060 Wirable Plug
$26.67 USD
Unit price
/
Unavailable
Electrical data
| Operating voltage [V] | < 250 DC |
|---|---|
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 22.68 |
|---|---|
| Dimensions [mm] | 38.5 x 15 x 40 |
| Material | PA 6.6 |
| Molded-body material | PA 6.6 |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| insulation displacement technology: 0.14...0.34 mm²; Core insulation: PVC / PETP; (Ø 1.0...1.55 mm); Cable sheath: Ø 4...5 mm |
Electrical connection - plug
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6; Locking: brass, nickel-plated |
|---|
