Ifm | SKU: IF-DTA300-E | Barcode: DOES NOT APPLY

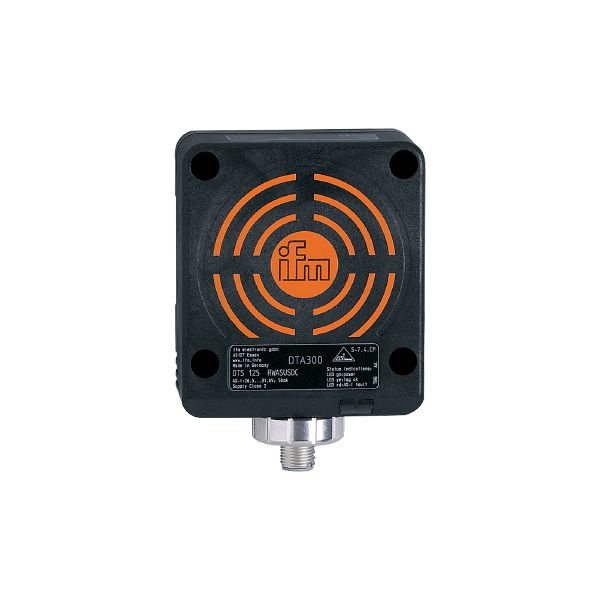

Ifm DTA300 Rfid Read/Write Antenna With As-Interface

Name: Ifm DTA300 Rfid Read/Write Antenna With As-Interface
Availability: BackOrder

$1,097.22 USD

Shipping calculated at checkout.

Ifm DTA300 Rfid Read/Write Antenna With As-Interface is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application

Detection of objects on transport equipment

Radio approval for

USA; Canada; EU/RED; Australia; Singapore; China

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 65
Protection class	III
Operating frequency [MHz]	0,125

Outputs

Electrical design	AS-i

Monitoring range

Travel speed [m/s]

< 0.5

Distance read/read head front

400

Distance read/read head side

280

Note on distance read/read head

based on	:
Read/write antenna		DTA300
Read head		DTA301

Distance write/read head front [mm]

500

Distance write/read head side [mm]

500

Note on distance write/read head

based on	:
Read/write antenna		DTA300
Read head		DTA301

Distance to the ID tag [mm]

Reading	:	≤ 80
static

Interfaces

Communication interface	AS-i

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 50295

1999-03

Shock resistance

EN 60068-2-29	40 g 6 ms
EN 60068-2-27	50 g 11 ms

Vibration resistance

EN 60068-2-6

20 g 10...55 Hz

MTTF [years]

422

AS-i classification

AS-i I/O configuration [hex]	7
AS-i ID code [hex]	4
AS-i certificate	83401

Mechanical data

Weight [g]	414
Housing	rectangular
Dimensions [mm]	92 x 80 x 40
Material	housing: PPE; metal parts: diecast zinc / brass nickel-plated

Displays / operating elements

Display

Operating voltage	1 x LED, green
tag communication	1 x LED, yellow
error in AS-i data communication	1 x LED, red

Remarks

For the distances to other ID tags see the respective data sheet (E803xx)

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12, rotatable; coding: A
