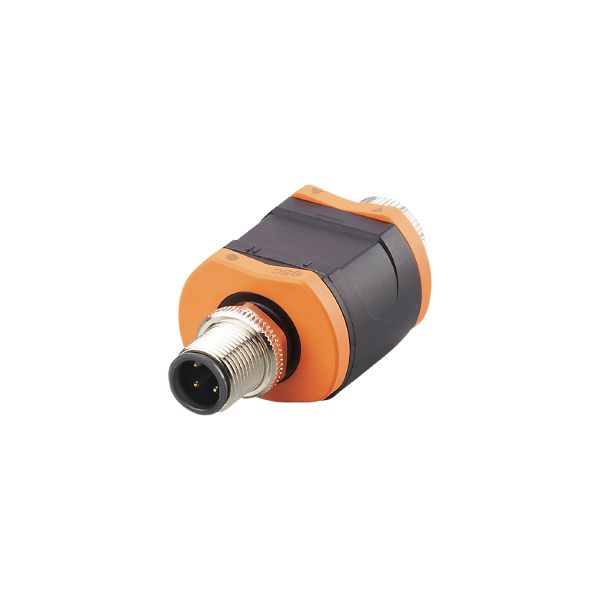

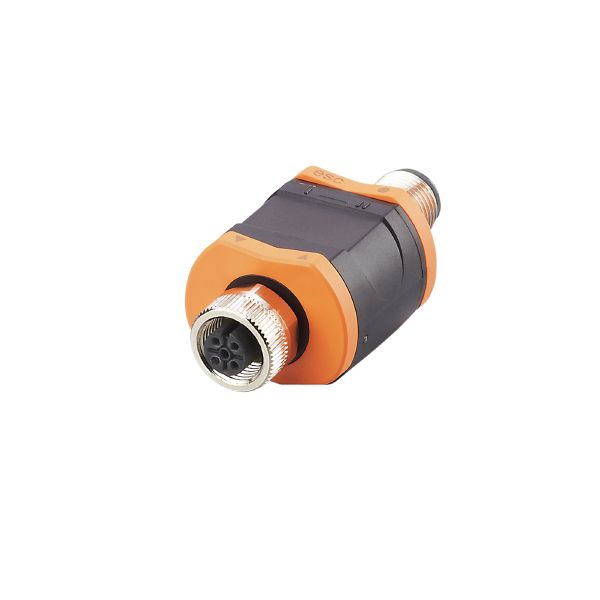

Ifm DP2200 Evaluation System And Display For Analog Signals

Name: Ifm DP2200 Evaluation System And Display For Analog Signals
Availability: BackOrder

SKU IF-DP2200-E

$182.22 USD - $182.22 USD

$182.22 USD

$182.22 USD - $182.22 USD

$182.22 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Application

Application	decentralized display, preprocessing and conversion of analog signals

Electrical data

Operating voltage [V]	18...30 DC; (to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	30...900
Max. current load total [A]	0.8

Inputs / outputs

Number of inputs and outputs	Number of analog inputs: 1; Number of digital outputs: 1; Number of analog outputs: 1

Inputs

Sensor supply of the inputs	from the operating voltage
Number of analog inputs	1
Analog input (current) [mA]	4...20

Outputs

Number of digital outputs	1
Voltage range DC [V]	10...30
Output function	normally open / closed; (configurable)
Max. current load per output [mA]	50
Number of analog outputs	1
Analog current output [mA]	4...20
Resolution of analog output	10 Bit

Accuracy / deviations

Accuracy	0.75; (% of the final value of the measuring range analog output)

Interfaces

Communication interface

IO-Link

Supported DeviceIDs

Type of operation	DeviceID
default	610

IO-Link Device

Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor
SIO mode	yes
Required master port class	A
Process data analog	1
Process data binary	1
Min. process cycle time [ms]	3

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90; (linearly decreasing to 50 % (40 °C); non condensing)
Max. height above sea level [m]	4000
Protection	IP 67
Degree of soiling	2

Tests / approvals

MTTF [years]	373

Mechanical data

Weight [g]	108
Dimensions [mm]	63 x 30 x 24
Material	PA

Displays / operating elements

Display

Switching status	LED, yellow
Power	LED, green
	7-segment LED display, red/green 4-digit configurable
	digit height 6,8 mm
	digit width 3,8 mm

Accessories

Accessories (optional)

mounting clip

Remarks

Further information is available in the manual.

Pack quantity

1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A

Electrical connection - Socket

	Connector: 1 x M12; coding: A
