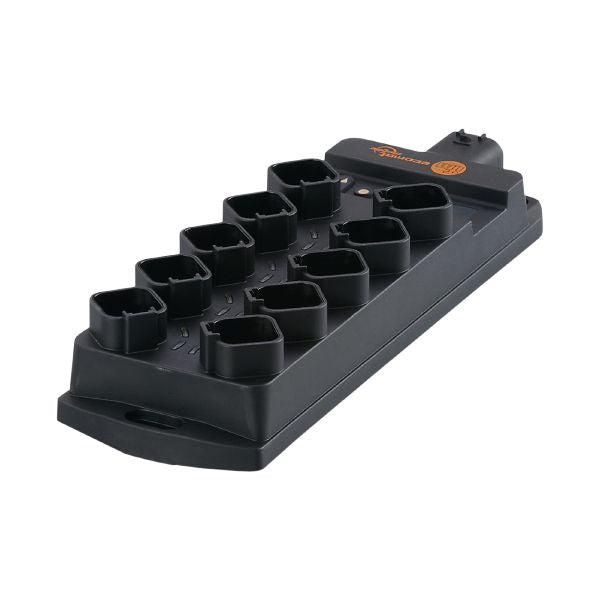

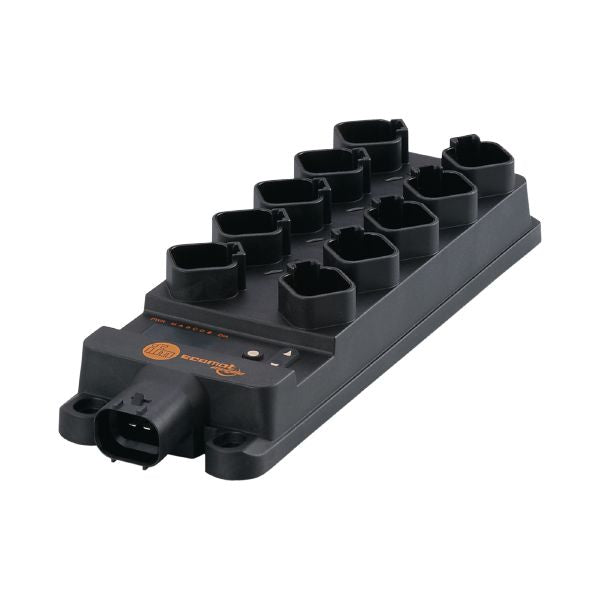

Ifm CR2051 I/O Modules For Mobile Machines

Name: Ifm CR2051 I/O Modules For Mobile Machines
Availability: BackOrder

SKU IF-CR2051-E

$585.56 USD - $585.56 USD

$585.56 USD

$585.56 USD - $585.56 USD

$585.56 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Electrical data

Operating voltage [V]	8...32 DC
Reverse polarity protection	yes

Inputs / outputs

Total number of inputs and outputs	16
Number of inputs and outputs	Number of digital outputs: 16

Outputs

Total number of outputs	16
Number of digital outputs	16
Short-circuit protection	yes
Number of PWM outputs	16
Number of PWM-I outputs	8

Software / programming

PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4

MTTF [years]

Mechanical data

Weight [g]	711
Type of mounting	mounting via screws
Dimensions [mm]	234.2 x 76 x 40.5
Material	PA reinforced glass-fiber

Displays / operating elements

Display

10-segment LED display, red/green 4-digit

Remarks

Pack quantity	1 pcs.

Electrical connection - CAN interface 1

CAN IN	Connector: 2 x DEUTSCH connector

Electrical connection - Outputs

Con. 1...8	Connector: 8 x DEUTSCH connector

Electrical connection - supply / CAN interface 2

X1	Connector: 1 x AMP connector
