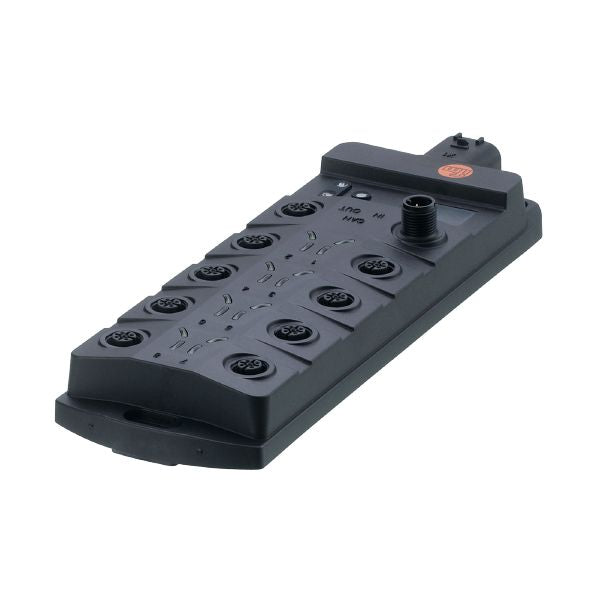

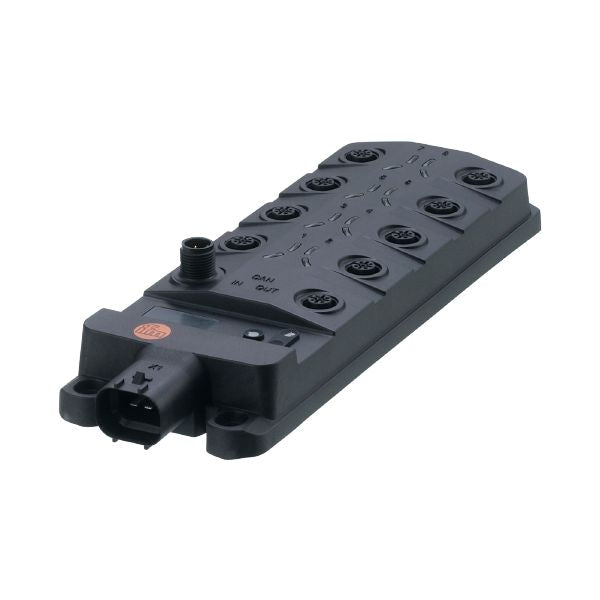

Ifm CR2041 Output Module For Mobile Machines
$534.44 USD
Unit price
/
Unavailable
Application
| System | gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | 188; (24 V DC: 105 mA; maximum: 300 mA) |
| Reverse polarity protection | yes |
| Overvoltage protection | yes; (36 V: t ≤ 10 s) |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital outputs: 16 |
Outputs
| Total number of outputs | 16 |
|---|---|
| Number of digital outputs | 16 |
| Short-circuit protection | yes |
| Short-circuit proof | yes |
| Number of PWM outputs | 16 |
| Number of PWM-I outputs | 8 |
Software / programming
| Parameter setting options | CODESYS 2.3 |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Communication interface | CAN | ||
|---|---|---|---|
| Number of CAN interfaces | 2 | ||
| Transmission rate | 20 kBit/s... 1 MBit/s | ||
| Protocol | CANopen; SAE J1939; free protocol | ||
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 | ||
| Interface | CAN Interface 2.0 A/B ISO 11898 | ||
| Factory settings |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 65; IP 67 |
| Degree of soiling | 2 |
Tests / approvals
| EMC |
|
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous shock resistance |
|
||||||||||||||||||||||
| Fast temperature changes |
|
||||||||||||||||||||||
| Vibration resistance |
|
||||||||||||||||||||||
| MTTF [years] | 95 |
Mechanical data
| Weight [g] | 655.9 |
|---|---|
| Type of mounting | mounting via screws |
| Dimensions [mm] | 234 x 76 x 37 |
| Material | housing: PA6/6.6; Display: PA; Pushbuttons: silicone |
Displays / operating elements
| Display |
|
||||
|---|---|---|---|---|---|
| Operating elements |
|
Hardware
| Processor | Freescale PowerPC 50 MHz |
|---|---|
| Working memory | 592 kByte |
| Mass storage | 1536 kByte Flash / 1 kByte FRAM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - CAN IN
| CAN IN | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - CAN OUT
| CAN OUT | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - Outputs
| Con. 1...8 | Connector: 8 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - supply / CAN interface
| X1 | Connector: 1 x AMP connector (TE-AMP 1745078-1); Contacts: tin-plated |
|---|
