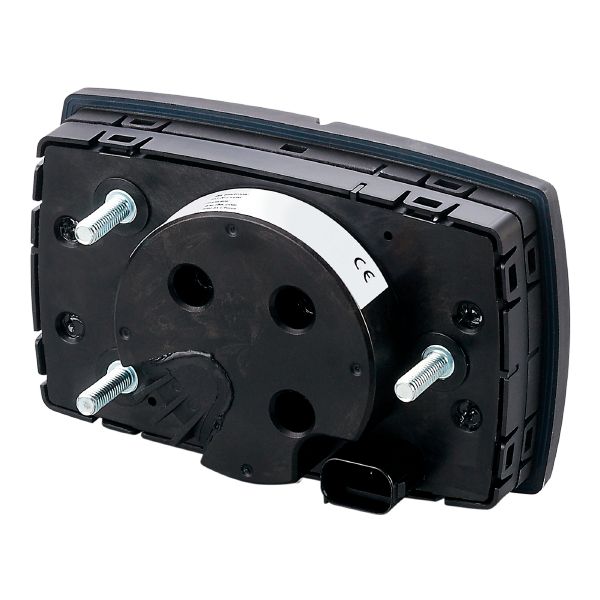

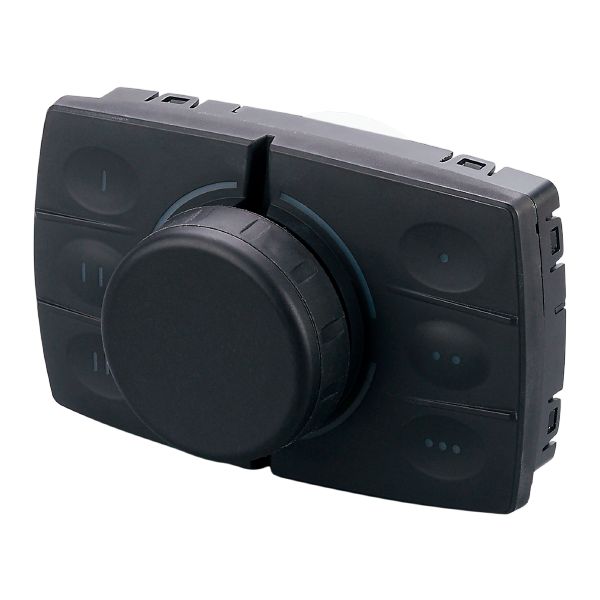

Ifm CR1301 Pushbutton Module W/ Knob, Push And Joystick Function In Two Axes

Ifm CR1301 Pushbutton Module W/ Knob, Push And Joystick Function In Two Axes

SKU IF-CR1301-E
$341.11 USD - $341.11 USD
$341.11 USD
$341.11 USD - $341.11 USD
$341.11 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Communication interface CAN
Dimensions [mm] 136 x 86 x 73.5
Application
Design installation in panels or panel cutouts
Electrical data
Operating voltage [V] 9...32 DC
Nominal voltage DC [V] 12 / 24
Current consumption [mA] < 400; (13,5 V DC)
Reverse polarity protection yes
Interfaces
Communication interface CAN
Number of CAN interfaces 1
CAN
Protocol J1939
Factory settings
Baud rate: 250
node ID: 135
Note on interfaces
dynamic address allocation is supported
Operating conditions
Ambient temperature [°C] -40...85
Storage temperature [°C] -40...85
Max. relative air humidity [%] 90
Max. height above sea level [m] 4000
Protection IP 65
Tests / approvals
EMC
UN/ECE-R10 Noise emission and noise interference: 100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 7637-2 pulse 1 severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4 severity level 4 / function state B (24 V)
ISO 7637-2 pulse 5b severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4 severity level 4 / function state B (12 V)
Continuous shock resistance
ISO 16750-3 30 g 6 ms / 24000 shocks
Fast temperature changes
EN 60068-2-30 damp heat: cyclical 55 ° C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant 40 ° C 93 % rH / test period 21 days
Vibration resistance
ISO 16750-3 Test VII random, mounting place car body
EN 60068-2-6 Sinus 10...500 Hz / 10 cycles/axis, sine
Salt spray test
EN 60068-2-52 Salt spray severity level 3 / motor vehicle
MTTF [years] 119
Mechanical data
Weight [g] 472.55
Weight (without accessories and packaging) [g] 400
Dimensions [mm] 136 x 86 x 73.5
Material housing: PC/ABS; silicone coating: PA66 transparent
Information on service life
Pushbuttons: > 100000 activations
knob (rotation by 360°): > 100000 cycles
knob (push function): > 100000 activations
knob (tilting per axis): > 100000 activations
Displays / operating elements
Display
four-part segment ring LED, multi-color
Operating elements
6 freely programmable backlit function keys
1 knob with push and joystick functions in two axes and with backlit keys
24 stops per revolution
Remarks
Pack quantity 1 pcs.
