Ifm | SKU: IF-CR0709-E | Barcode: DOES NOT APPLY

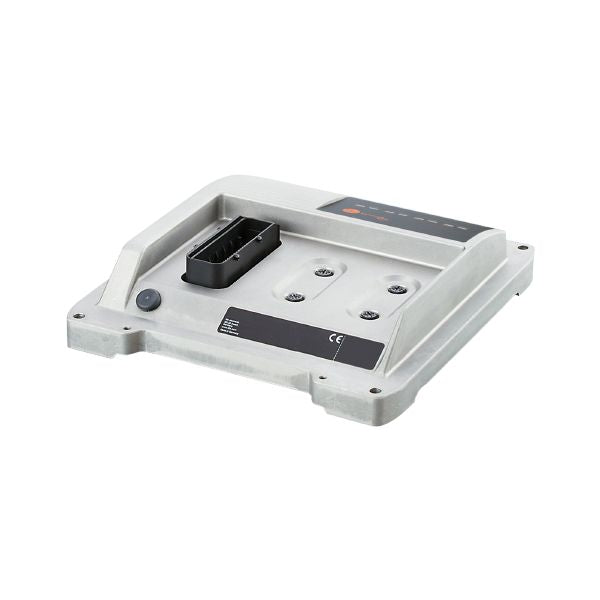

Ifm CR0709 Ecomatcontroller

Name: Ifm CR0709 Ecomatcontroller
Availability: BackOrder

$1,531.11 USD

Shipping calculated at checkout.

Ifm CR0709 Ecomatcontroller is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Total number of inputs	32
Total number of outputs	28
Communication interface	Ethernet; CAN; RS232
Protection	IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)

Electrical data

Operating voltage [V]	8...32 DC; (t < 10 s: 36 V)
Nominal voltage DC [V]	12 / 24
Current consumption [mA]	< 400
Power consumption [W]	8; (VBB30)
Reverse polarity protection	yes; (in case of supply via the on-board system / battery)

Inputs / outputs

Total number of inputs and outputs	60

Inputs

Total number of inputs	32
Number of frequency inputs	8
Number of resistor inputs	4
Number of digital inputs	32
Number of analog inputs	16

Digital inputs, frequency signal (IN FREQUENCY-B)

Number

Plug ST A

IN0000...IN0003

IN0500...IN0503

Frequency input

function type	Frequency, Zykluszeit
software mode	IN_PERIOD_RATIO_CSO/CSI
Frequency [Hz]	0,01...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	Frequency, Zykluszeit
software mode	IN_PERIOD_RATIO_US_CSO/CSI
Frequency [Hz]	0,1...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	Frequency
software mode	IN_FREQUENCY_CSO/CSI
Frequency [Hz]	0,5...30000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	pulse
software mode	IN_COUNT_CSO/CSI
Frequency [Hz]	0...30000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	pulse, incremental
software mode	IN_INC_ENCODER_CSO/CSI
Frequency [Hz]	0,0625...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	phase
software mode	IN_PHASE_CSO/CSI
Frequency [Hz]	0,0625...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Analog input

function type	Voltage
software mode	IN_VOLTAGE_10
input range [V]	0...10
input resistance [Ω]	67600
Resolution	12 Bit
Accuracy	100 mV
input frequency [Hz]	< 330
diagnostic level low	0 V; (configurable)
diagnostic level high	10 V; (configurable)

Digital input

function type	binary, High-Side
software mode	IN_DIGITAL_CSO
Switching level high [V]	> 65 % VBB30; (configurable)
Switching level low [V]	< 25 % VBB30; (configurable)
Resolution	12 Bit
Accuracy	960 mV
input frequency [Hz]	< 330
input resistance [Ω]	10000
diagnostic level low	0 % VBB30; (configurable)
diagnostic level high	100 % VBB30; (configurable)

Digital input

function type	binary, low-side
software mode	IN_DIGITAL_CSI
Switching level high [V]	> 70 % VBB30; (configurable)
Switching level low [V]	< 30 % VBB30; (configurable)
Resolution	12 Bit
Accuracy	320 mV
input frequency [Hz]	< 330
input resistance [Ω]	10000
diagnostic level low	0 % VBB30; (configurable)
diagnostic level high	400 % VBB30; (configurable)

Multifunction inputs, analog / digital (IN MULTIFUNCTION-A)

Number

Plug ST A

IN0100...IN0103

IN0200...IN0203
