Ifm | SKU:
IF-AL5021-E

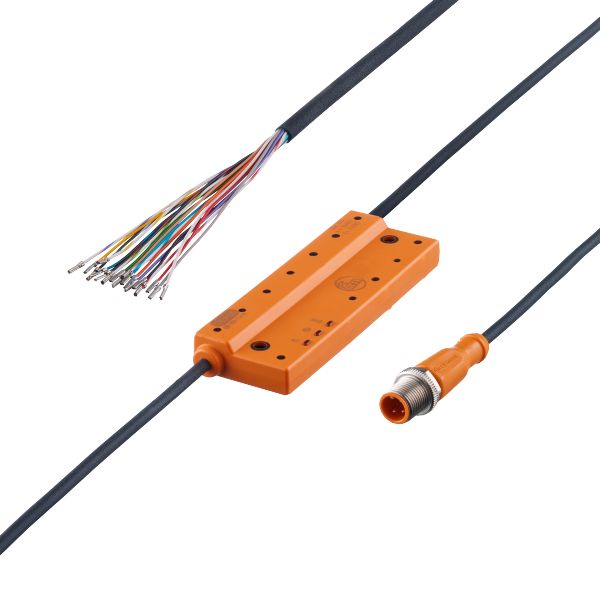

Ifm AL5021 Io-Link Input/Output Module
$166.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm AL5021 Io-Link Input/Output Module is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm AL5021 Io-Link Input/Output Module
$166.67 USD
Unit price
/
Unavailable
Application
| System | Halogen-free; gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 50...1050; (US) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 16 |
Inputs
| Number of digital inputs | 16; (configurable) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | US |
| Voltage supply [V] | 18...30 |
Outputs
| Number of digital outputs | 16; (configurable) |
|---|---|
| Max. current load outputs total [A] | 1 |
| Short-circuit protection | yes |
| Actuator supply outputs | US |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| SDCI standard | IEC 61131-9 | ||||
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 1 | ||||
| Supported DeviceIDs |
|
||||
| Note |
|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 90 |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
Mechanical data
| Weight [g] | 233 |
|---|---|
| Dimensions [mm] | 107 x 35.4 x 15.1 |
| Material | housing: PA orange |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| X1 | Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|---|
| X1 | Connector: 1 x M12, straight; coding: A; Moulded body: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
Electrical connection - inputs / outputs
| Connection | Cable: 1.5 m, PUR, Halogen-free, black, Ø 6.0 mm; 18 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|
