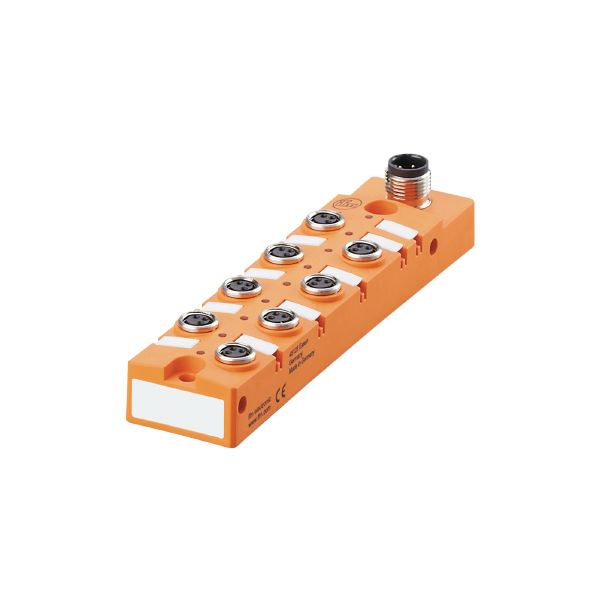

Ifm AL2411 Io-Link Compactline Module
| Operating voltage [V] | 18...30 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | 50 |
| Current rating per port [A] | 0.1 |
|---|
| Number of inputs and outputs | Number of digital inputs: 8 |
|---|
| Number of digital inputs | 8; (4 x 2) |
|---|---|
| Input circuit of digital inputs | PNP |
| Input current limitation [mA] | 15 |
| Input current High [mA] | 6...10 |
| Input current low [mA] | 0...2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Supported DeviceIDs |
|
| Transmission type | COM2 (38,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | no |
| Process data binary | 32 |
| Min. process cycle time [ms] | 2.9 |
| Ambient temperature [°C] | -25...70 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...85 | ||||
| Max. relative air humidity [%] | 90; (non condensing) | ||||
| Protection | IP 67 | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Chemical media |
|
| EMC |
|
|---|
| Weight [g] | 144.5 |
|---|---|
| Material | PBT; Socket: brass nickel-plated; O-ring: FKM |
| Sealing material | FKM |
| Display |
|
|---|
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: M12; coding: A |
| Connector: M8; coding: A; sealing: FKM |
