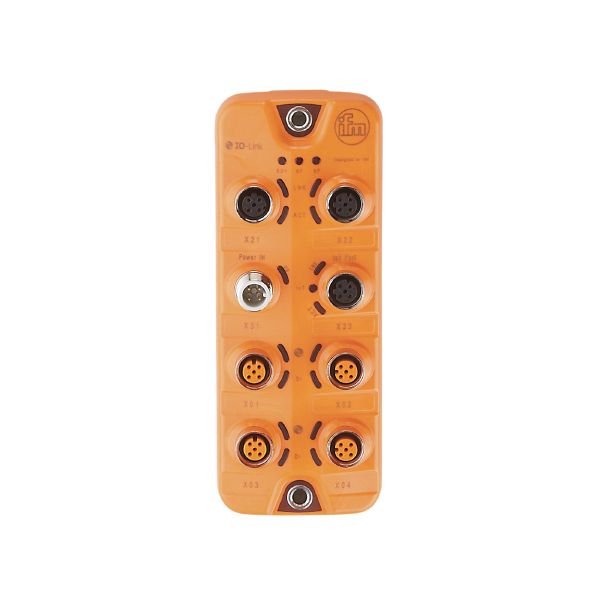

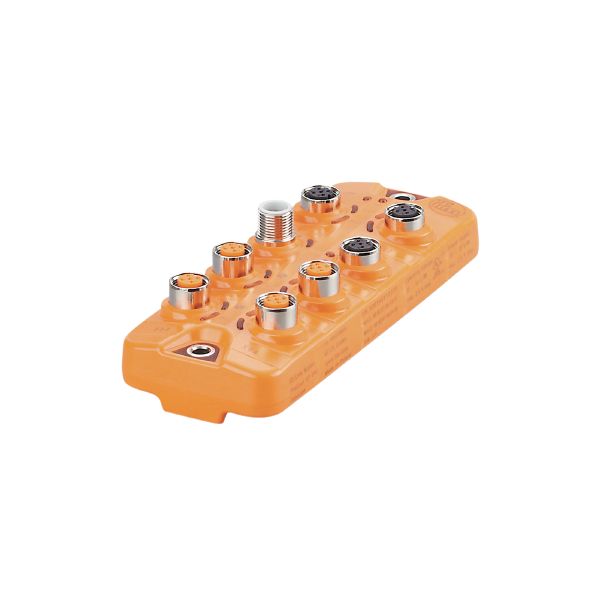

Ifm AL1340 Io-Link Master With Modbus Tcp Interface

Ifm AL1340 Io-Link Master With Modbus Tcp Interface

SKU IF-AL1340-E
$416.11 USD - $416.11 USD
$416.11 USD
$416.11 USD - $416.11 USD
$416.11 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Application
Application I/O modules for field applications
Daisy-chain function fieldbus interface
Electrical data
Operating voltage [V] 20...30 DC; (US ; to SELV/PELV)
Current consumption [mA] 300...3900; (US)
Protection class III
Sensor supply US
Max. current load total [A] 3.6
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of digital inputs: 8; Number of digital outputs: 4
Inputs
Number of digital inputs 8; (IO-Link Port Class A: 4 x 2)
Switching level high [V] 11...30
Switching level low [V] 0...5
Digital inputs protected against short circuits yes
Outputs
Number of digital outputs 4; (IO-Link Port Class A: 4 x 1)
Max. current load per output [mA] 300
Short-circuit proof yes
Interfaces
Communication interface Ethernet; IO-Link
Ethernet - Modbus TCP
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10 MBit/s; 100 MBit/s
Protocol Modbus TCP
Factory settings
IP address: 192.168.1.250
subnet mask: 255.255.255.0
gateway IP address: 0.0.0.0
MAC address: see type label
Ethernet - Internet of Things
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10 MBit/s; 100 MBit/s
Protocol MQTT JSON
Factory settings
IP address: 169.254.x.x
subnet mask: 255.255.0.0
gateway IP address: 0.0.0.0
MAC address: see type label
Note on interfaces
Safety protocol: HTTPS
IO-Link Master
Transmission type COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision 1.1
Number of ports class A 4
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -25...85
Max. relative air humidity [%] 90
Protection IP 65; IP 66; IP 67
Protection rating (NEMA 250) 6P
Degree of soiling 2
Chemical media
ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1 AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-4
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10
MTTF [years] 95
Mechanical data
Weight [g] 302
Material housing: PA orange; Socket: brass nickel-plated
Sealing material FKM
Remarks
Remarks
Further information is available in the manual.
Pack quantity 1 pcs.
Electrical connection - Ethernet
Modbus TCP X21, X22 Connector: M12; coding: D; sealing: FKM
Electrical connection - Process connection
IO-Link Port Class A X01...X04 Connector: M12; coding: A; sealing: FKM
Electrical connection - voltage supply
X31 Connector: M12; coding: A
