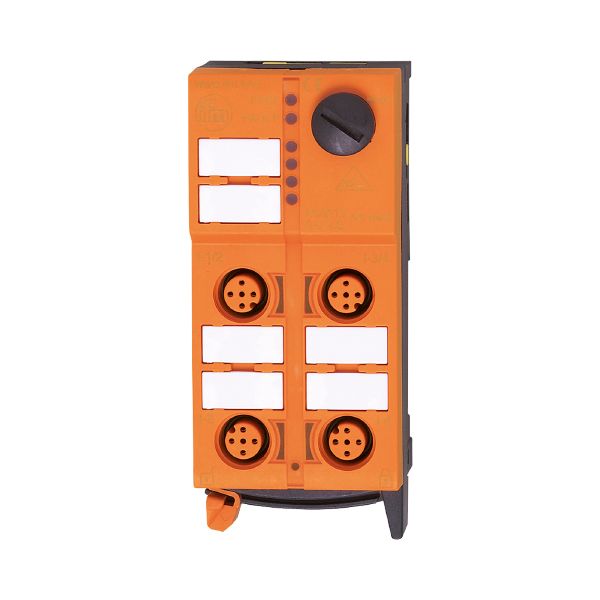

Ifm AC5291 As-Interface Classicline Module With Quick Mounting Technology
Ifm AC5291 As-Interface Classicline Module With Quick Mounting Technology is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm AC5291 As-Interface Classicline Module With Quick Mounting Tech...
| Application | field installation |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 250 |
| Max. current load total [A] | 4; (max. current rating of the piercing points) |
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 18...30; (via flat cable) |
| Max. total current rating of inputs [mA] | 200 |
| Input current High [mA] | 6...10 |
| Input current low [mA] | 0...2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 405 |
| AS-i version | 2.11; 3.0 | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i addressing | Addressing socket | ||||||||||||||||||||
| Extended addressing mode | yes | ||||||||||||||||||||
| AS-i master profile | M2; M3; M4 | ||||||||||||||||||||
| AS-i profile | S-0.A.E | ||||||||||||||||||||
| AS-i I/O configuration [hex] | 0 | ||||||||||||||||||||
| AS-i ID code [hex] | A.E | ||||||||||||||||||||
| Data bits |
|
| Weight [g] | 157.35 |
|---|---|
| Type of mounting | AS-i flat cable connection |
| Material | PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Display |
|
|---|
| Module connection | Flat cable |
|---|
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
||||||
|---|---|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | quick mounting technology for AS-i flat cable: ; three selectable directions |
|---|---|
| Connection | Connector: M12 |
