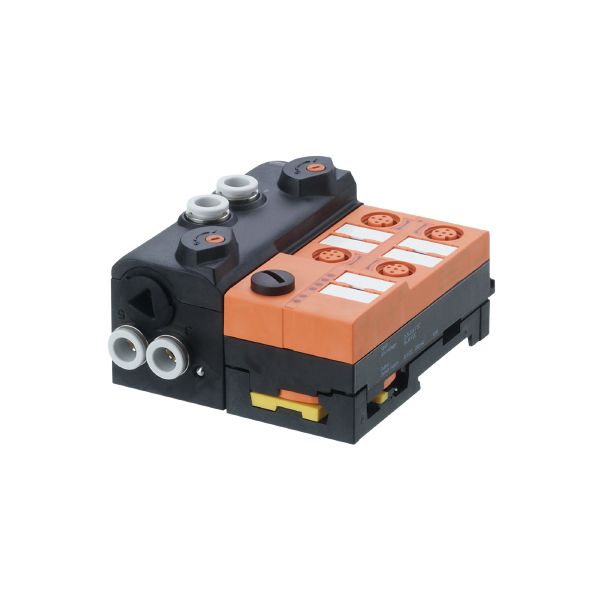

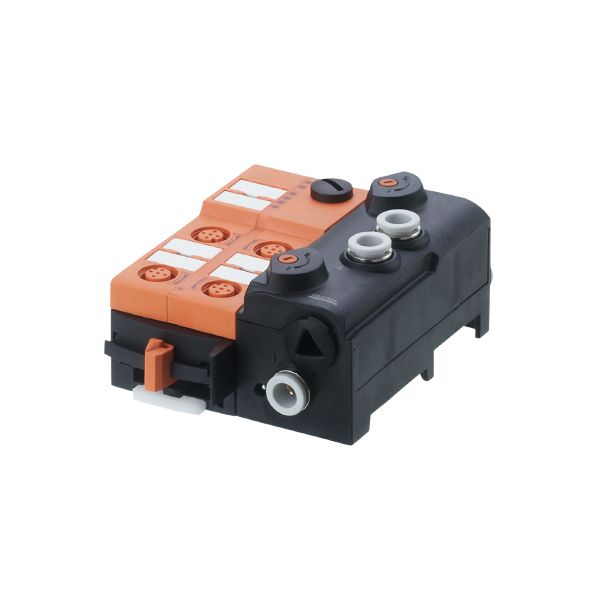

Ifm AC5270 As-Interface Airbox With Quick Mounting Technology

SKU IF-AC5270-E
Original price $0 USD
Original price $618.89 USD - Original price $618.89 USD
Original price
Current price $618.89 USD
$618.89 USD - $618.89 USD
Current price $618.89 USD
Availability:
0 in stock, ready to be shipped
Pre Order

Payment option

Why wait when you can be ahead of the game?
Lead Time - 1 to 2 Weeks

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Application
Application field installation
Medium temperature [°C] -10...50
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 280
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 4; Number of pneumatic outputs: 2
Inputs
Number of digital inputs 4
Input circuit of digital inputs PNP
Sensor supply of the inputs AS-i
Voltage supply [V] 20...30; (via flat cable)
Max. total current rating of inputs [mA] 200
Input current High [mA] 6...10
Input current low [mA] 0...2
Switching level high [V] > 11
Digital inputs protected against short circuits yes
Outputs
Number of pneumatic outputs 2
Actuator supply outputs AS-i
Operating conditions
Ambient temperature [°C] -10...55
Protection IP 65; IP 67
Tests / approvals
EMC
EN 50295
IEC 61000-6-2
MTTF [years] 258
AS-i classification
AS-i version 2.11; 3.0
AS-i addressing Addressing socket
Extended addressing mode yes
AS-i master profile M2; M3; M4
AS-i profile S-7.A.E
AS-i I/O configuration [hex] 7
AS-i ID code [hex] A.E
Data bits
Data bit D0 D1 D2 D3
Input 1 2 3 4
Socket I-1/2 I-1/2 I-2 I-3/4 I-3/4 I-4
Pin 4 2 4 4 2 4
pneumatic output 2 4 - -
Mechanical data
Weight [g] 381.5
Type of mounting quick mounting
Material PA; POM; Piercing contacts: CuSn6 nickel-plated and tin-plated
Pneumatic system 1 x 5/3-way slide valve (free from overlapping); middle position blocked
Operating pressure range [bar] 3...8
Operating pressure range [MPa] 0.3...0.8
Operating pressure range [psi] 43.5...116
Air flow at 6/5 bar [l/min] 400
Permissible compressed air non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4
Manual override pressing/releasing or pressing/turning/locking
Tube fittings 8 mm
Exhaust exhaust can be discharged through tube connection
Displays / operating elements
Display
Power LED, green
errors LED, red
Function LED, yellow
Electrical connection
Module connection Flat cable
Accessories
Items supplied
lower part
Accessories (optional)
Mounting plate:, E74999
Module lower part:, E75000
Protective cap: M12, E73004
sealing plug:, E75231
Silencer:, E75232
Push-in L-fitting:, E75228
Push-in T-fitting:, E75227
Remarks
Remarks
If not pneumatically operated, E75231 sealing plug must be inserted.
Avoid ingress of dirt and dust.
Do not connect any of the following points to an external potential:
L-, L+, I-1, I-2, I-3, I-4
The connections are electrically connected with the AS-i cable.
Please see the notes on compressed air and EMC/ESD under "Downloads"
Pack quantity 1 pcs.
Electrical connection
Connection quick mounting technology for AS-i flat cable: ; three selectable directions
Connection Connector: M12
Diagrams and graphs
Pneumatic symbol
