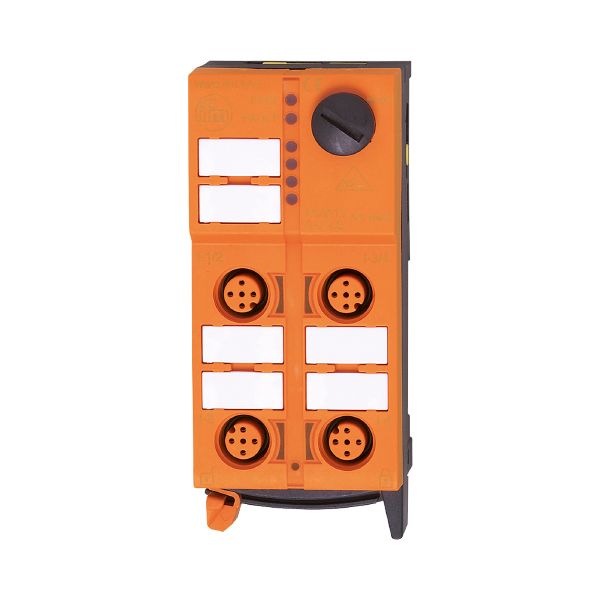

Ifm AC5245 As-Interface Classicline Module With Quick Mounting Tech...
| Application | field installation |
|---|
| Operating voltage [V] | 26.5...31.6 DC; (cULus - Class 2 source required) |
|---|---|
| Max. current consumption from AS-i [mA] | 250 |
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 18...30 |
| Max. total current rating of inputs [mA] | 200 |
| Input current High [mA] | 6...10 |
| Input current low [mA] | 0...2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 406 |
| AS-i version | 2.11; 3.0 | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i addressing | Addressing socket | ||||||||||||||||||||
| Extended addressing mode | yes | ||||||||||||||||||||
| AS-i master profile | M2; M3; M4 | ||||||||||||||||||||
| AS-i profile | S-0.A.E | ||||||||||||||||||||
| AS-i I/O configuration [hex] | 0 | ||||||||||||||||||||
| AS-i ID code [hex] | A.E | ||||||||||||||||||||
| Data bits |
|
| Weight [g] | 173 |
|---|---|
| Type of mounting | AS-i flat cable connection |
| Material | PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Display |
|
|---|
| Module connection | Flat cable |
|---|
| Items supplied |
|
|
|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| quick mounting technology for AS-i flat cable: ; three selectable directions | |
| Connector: M12; coding: A |
