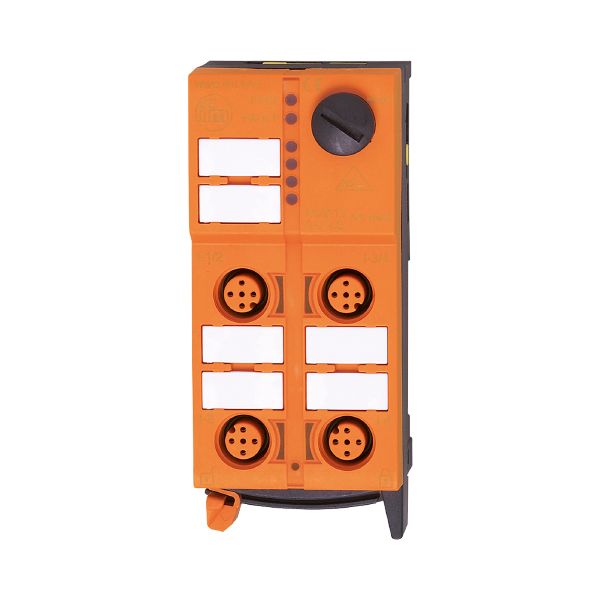

Ifm AC5226 As-Interface Classicline Module With Quick Mounting Technology
Ifm AC5226 As-Interface Classicline Module With Quick Mounting Technology is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Number of inputs and outputs | Number of analog inputs: 4 |
---|
Application | field installation |
---|
Operating voltage [V] | 18...31.6 DC |
---|---|
Max. current consumption from AS-i [mA] | 50 |
Reverse polarity protection | yes |
Max. current load total [A] | 2 |
Additional voltage supply [V] | 16...30 DC; (AUX) |
Max. current consumption from additional supply [mA] | 2000 |
Number of inputs and outputs | Number of analog inputs: 4 |
---|
Sensor supply of the inputs | AUX |
---|---|
Number of analog inputs | 4; (connection of 2-wire, 3-wire and 4-wire sensors) |
Analog input (current) [mA] | 4...20 |
Max. voltage drop across load for nominal voltage [V] | 10 |
Analog inputs protected against short circuits | yes |
Resolution of analog input | 12 bit |
Accuracy | 0.5; (% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range) |
---|
Ambient temperature [°C] | -25...70 |
---|---|
Storage temperature [°C] | -25...70 |
Max. relative air humidity [%] | 90; (non condensing) |
Max. height above sea level [m] | 2000 |
Protection | IP 67 |
EMC |
|
||||||
---|---|---|---|---|---|---|---|
MTTF [years] | 105 | ||||||
UL approval |
|
AS-i version | 2.11; 3.0 |
---|---|
Extended addressing mode | no |
AS-i master profile | M3; M4 |
AS-i profile | S-7.3.E |
AS-i I/O configuration [hex] | 7 |
AS-i ID code [hex] | 3.E |
AS-i certificate | 123501 |
Weight [g] | 188 |
---|---|
Material | PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
Display |
|
---|
Module connection | Flat cable |
---|
Items supplied |
|
|
---|---|---|
Accessories (optional) |
|
Remarks |
|
|||
---|---|---|---|---|
Pack quantity | 1 pcs. |
quick mounting technology for AS-i flat cable: ; three selectable directions | |
Connector: M12; coding: A |
